| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Current Rating (Amps) |
Mounting Type |
Circuit |
Switch Function |
Operating Temperature |
Termination Style |
Illumination Type, Color |
Illumination Voltage (Nominal) |
Illumination |
Bushing Thread |
Actuator Length |
Actuator Type |
Ingress Protection |
Panel Cutout Dimensions |
Voltage Rating - AC |
Voltage Rating - DC |
|
SF39P000000
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
APEM Inc. |
50 |
ROHS3 Compliant |
SF |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Panel Mount | SPDT | On-Off-On | -20°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 10.70mm | Standard Round | - | Circular - 6.50mm Dia | 20 V | 20 V |
|
2GA71-D-4B-B
SWITCH TOGGLE SPST 17A 125V
|
Contact |
- immediate |
Carling Technologies |
12 |
ROHS3 Compliant |
G |
Bulk |
Active |
Datasheet
|
- | 17A (AC) | Panel Mount | SPST | On-Off | 0°C ~ 85°C | Quick Connect - 0.250" (6.3mm) | - | - | Non-Illuminated | 15/32-32 | 17.45mm | Paddle | - | Circular - 12.70mm Dia | 125 V | - |
|
M2024S2A2G30
SWITCH TOGGLE SP3T 0.4VA 28V
|
Contact |
- immediate |
NKK Switches |
1 |
ROHS3 Compliant |
M |
Bulk |
Obsolete |
Datasheet
|
Jumper needed to achieve triple throw | 0.4VA (AC/DC) | Through Hole, Right Angle | SP3T | On-On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 6.86mm | Standard Round | - | Circular - 6.50mm Dia | 28 V | 28 V |
|
7105P3D9V3BE
TOGGLE SWITCHES
|
Contact |
- immediate |
C&K |
1200 |
ROHS3 Compliant |
7000 |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Through Hole | SPDT | Mom-Off-Mom | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 13.21mm | Flat Anti-Rotation | - | - | 20 V | 20 V |
|
1825136-2
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
TE Connectivity ALCOSWITCH Switches |
100 |
ROHS3 Compliant |
Gemini A |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Panel Mount, Right Angle | SPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 16.28mm | Locking Lever | - | Circular - 6.35mm Dia | 20 V | 20 V |
|

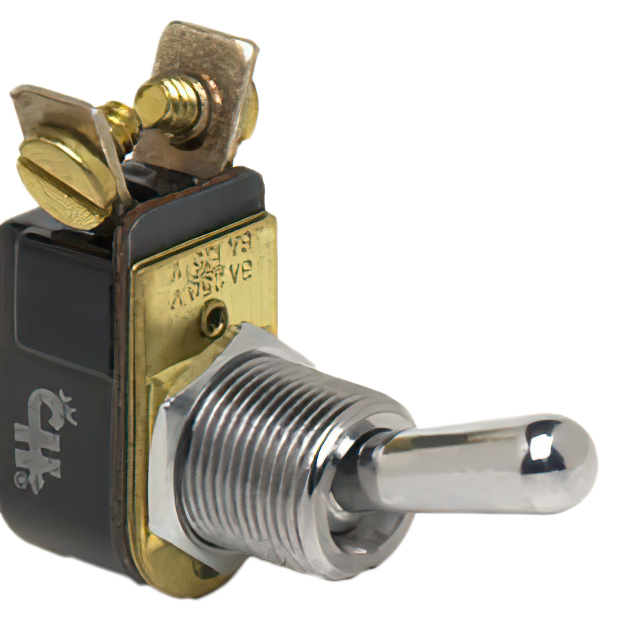

M-484
SWITCH TOGGLE SPST 10A 12V
|
Contact |
- immediate |
Littelfuse Inc. |
80 |
RoHS Compliant By Exemption |
- |
Bulk |
Obsolete |
Datasheet
|
- | 10A (DC) | Panel Mount | SPST | On-Off | - | Screw Terminal | - | - | Non-Illuminated | 15/32-32 | 17.46mm | Standard Round | - | Circular - 11.90mm Dia | 12 V | - |
|
7101MPYZQE
SWITCH TOGGLE SPDT 5A 120V
|
Contact |
- immediate |
C&K |
0 |
RoHS Compliant By Exemption |
7000 |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Panel Mount | SPDT | On-On | -30°C ~ 85°C | Solder Lug | - | - | Non-Illuminated | 1/4-40 | 5.08mm | Anti-Rotation | - | Circular - 6.35mm Dia | 120 V | 28 V |
|
2M1-DP1-T8-B0-VS5GE
SWITCH TOGGLE DPDT 5A 125V
|
Contact |
- immediate |
Carling Technologies |
100 |
ROHS3 Compliant |
2M |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Panel Mount | DPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 15/32-32 | 17.50mm | Anti-Rotation | IP67 - Dust Tight, Waterproof | Circular - 11.91mm Dia | 125 V | 28 V |
|
T101MY9CBE
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
C&K |
0 |
ROHS3 Compliant |
T |
Tray |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Through Hole | SPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 5.44mm | Standard Round | - | - | 20 V | 20 V |
|
11TS15-8
SWITCH TOGGLE SPDT 20A 125V
|
Contact |
9 - immediate |
Honeywell Sensing and Productivity Solutions |
1 |
Request Inventory Verification |
TS |
Bulk |
Obsolete |
Datasheet
|
- | 20A (AC) | Panel Mount | SPDT | On-Mom | -54°C ~ 71°C | Screw Terminal | - | - | Non-Illuminated | 15/32-32 | 16.51mm | Standard Round | - | Circular - 12.40mm Dia | 125 V | - |
|
7101P4D9V3GE
SWITCH TOGGLE SPDT 5A 120V
|
Contact |
- immediate |
C&K |
2640 |
ROHS3 Compliant |
7000 |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Through Hole | SPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 8.13mm | Flat Anti-Rotation | - | - | 120 V | 28 V |
|
E101SYCRE
SWITCH TOGGLE SPDT 7.5A 125V
|
Contact |
- immediate |
C&K |
80 |
ROHS3 Compliant |
E |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 7.5A (AC/DC) | Panel Mount | SPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 10.16mm | Standard Round | IP57 - Dust Protected, Waterproof | Circular - 6.35mm Dia | 125 V | 28 V |
|
A22JH-JA
SWITCH TOGGLE DPDT 0.4VA 28V
|
Contact |
- immediate |
NKK Switches |
1 |
ROHS3 Compliant |
A |
Bulk |
Active |
Datasheet
|
Black Cap | 0.4VA (AC/DC) | Through Hole, Right Angle | DPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded, Square | 6.30mm | Standard Round with Cap | - | - | 28 V | 28 V |
|
D22013V
SWITCH TOGGLE SPDT 0.4VA 48V
|
Contact |
- immediate |
NKK Switches |
1 |
ROHS3 Compliant |
D2 |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | -10°C ~ 70°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 10.50mm | Standard Round | - | - | 48 V | 48 V |
|
S3A/U
SWITCH TOGGLE SPDT 15A 125V
|
Contact |
- immediate |
NKK Switches |
1 |
ROHS3 Compliant |
S |
Bulk |
Active |
Datasheet
|
- | 15A (AC), 20A (DC) | Panel Mount | SPDT | On-Off-On | -10°C ~ 70°C | Solder Lug | - | - | Non-Illuminated | M12 x 1 | 17.50mm | Standard Round | - | Circular - 12.50mm Dia | 125 V | 30 V |
