| Chọn |
Mfr Part # |
Giá |
Stock ? |
Nhà sản xuất |
Số lượng đặt tối thiểu |
RoHS status |
Seri |
Kiểu đóng gói |
Trạng thái sản phẩm |
Tài liệu |
Features |
Gender |
Contact Finish |
Color |
Mounting Type |
Number of Positions |
Pitch |
Operating Temperature |
Read Out |
Contact Type |
Card Type |
Card Thickness |
Flange Feature |
Termination |
Contact Finish Thickness |
Contact Material |
Number of Positions/Bay/Row |
Number of Rows |
|
MEC1-120-02-LM-D-K-TR
1.00 MM MINI EDGE CARD SOCKET, V
|
Liên hệ |
- immediate |
Samtec Inc. |
150 |
ROHS3 Compliant |
MEC1 |
Tape & Reel (TR) |
Active |
Tài liệu
|
Pick and Place | Female | Gold | Black | Surface Mount | 40 | 0.039" (1.00mm) | -55°C ~ 125°C | Dual | Loop Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Phosphor Bronze | - | 2 |
|
MEC1-120-02-L-D-NP-K-TR
CONN EDGE DUAL FMALE 40POS 0.039
|
Liên hệ |
- immediate |
Samtec Inc. |
250 |
ROHS3 Compliant |
MEC1 |
Tape & Reel (TR) |
Active |
Tài liệu
|
Pick and Place | Female | Gold | Black | Surface Mount | 40 | 0.039" (1.00mm) | -55°C ~ 125°C | Dual | Loop Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | - | 2 |
|
HSEC8-120-03-S-DV-A-K
CONN EDGE DUAL FMALE 40POS 0.031
|
Liên hệ |
- immediate |
Samtec Inc. |
78 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Tray |
Active |
Tài liệu
|
Board Guide | Female | Gold | Black | Surface Mount | 40 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.093" (2.36mm) | - | Solder | 30.0µin (0.76µm) | Beryllium Copper | 20 | 2 |
|

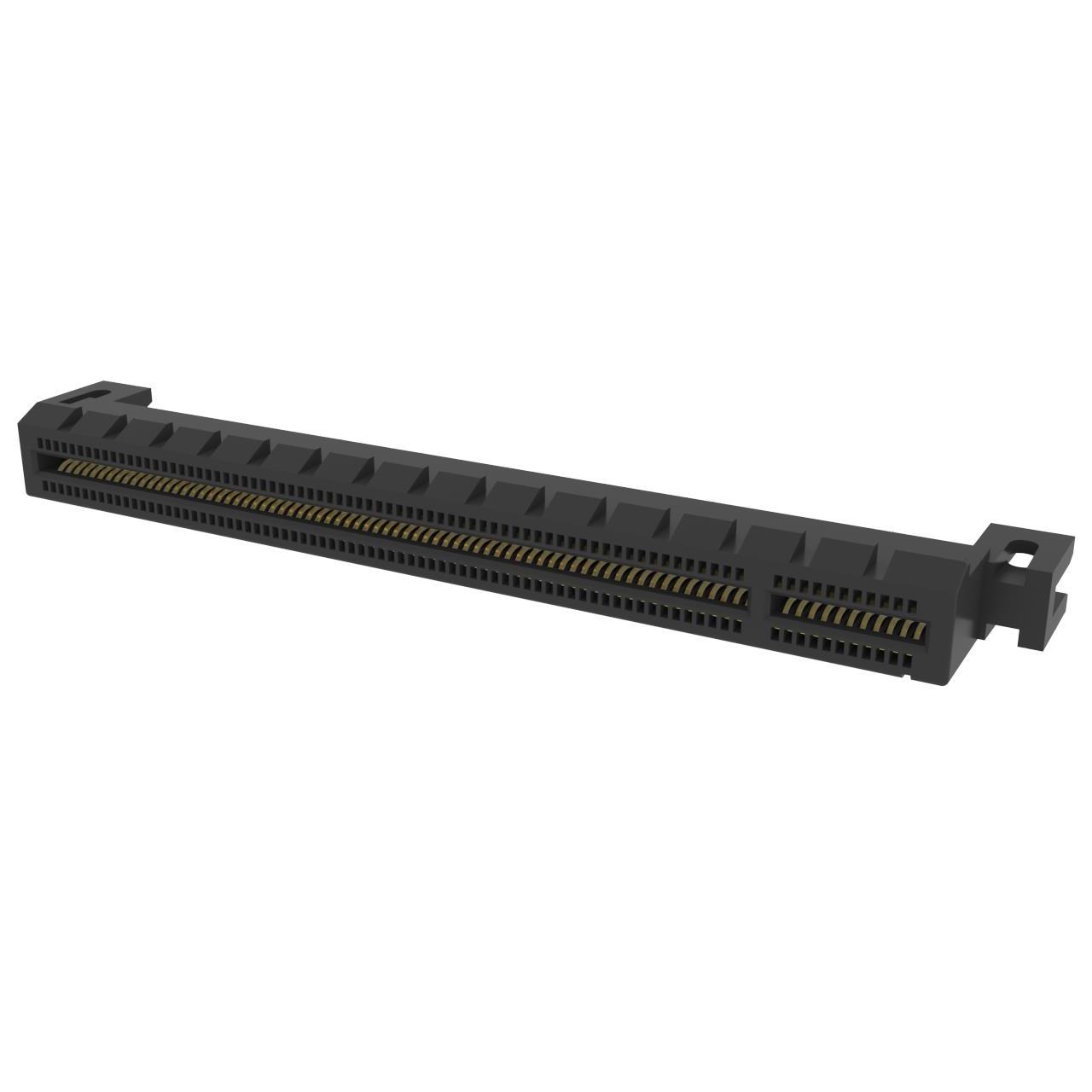

10069690-10113PLF
CONN PCI EXP FMALE 164POS 0.039
|
Liên hệ |
- immediate |
Amphenol CS (FCI) |
0 |
RoHS Compliant |
- |
Tray |
Active |
Tài liệu
|
Card Extender, Locking Ramp, Pick and Place | Female | Gold | Black | Board Edge, Straddle Mount | 164 | 0.039" (1.00mm) | -55°C ~ 85°C | Dual | - | PCI Express™ | 0.062" (1.57mm) | Straddle Mount Opening, Unthreaded, 0.079" (2.00mm) | Solder | 15.0µin (0.38µm) | Copper Alloy | - | 2 |
|
EBA10DREH
CONN EDGE DUAL FMALE 20POS 0.125
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tray |
Active |
Tài liệu
|
- | Female | Gold | Blue | Panel Mount | 20 | 0.125" (3.18mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder Eyelet(s) | 10.0µin (0.25µm) | Phosphor Bronze | 10 | 2 |
|
EEC19DRES
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Blue | Panel Mount | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder Eyelet(s) | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
EEC19DRTS
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Blue | Through Hole | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
ECC05DRYI
CONN EDGE DUAL FMALE 10POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tray |
Active |
Tài liệu
|
- | Female | Gold | Blue | Through Hole | 10 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Top Mount Opening, Threaded Insert, 4-40 | Solder | 30.0µin (0.76µm) | Phosphor Bronze | 5 | 2 |
|
GEC07DRAI
CONN EDGE DUAL FMALE 14POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Through Hole, Right Angle | 14 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Top Mount Opening, Threaded Insert, 4-40 | Solder | 100.0µin (2.54µm) | Phosphor Bronze | 7 | 2 |
|
GEC19DREH
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Panel Mount | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder Eyelet(s) | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
GEC19DREN
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Free Hanging (In-Line) | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder Eyelet(s) | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
GEC17DRES
CONN EDGE DUAL FMALE 34POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Panel Mount | 34 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder Eyelet(s) | 100.0µin (2.54µm) | Phosphor Bronze | 17 | 2 |
|
GEC19DRTH
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Through Hole | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
GEC19DRTN
CONN EDGE DUAL FMALE 38POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Tin | Black | Through Hole | 38 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 100.0µin (2.54µm) | Phosphor Bronze | 19 | 2 |
|
GCC06DRTS
CONN EDGE DUAL FMALE 12POS 0.100
|
Liên hệ |
- immediate |
Sullins Connector Solutions |
10 |
ROHS3 Compliant |
- |
Tube |
Active |
Tài liệu
|
- | Female | Gold | Black | Through Hole | 12 | 0.100" (2.54mm) | -65°C ~ 125°C | Dual | Full Bellows | Non Specified - Dual Edge | 0.062" (1.57mm) | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Solder | 30.0µin (0.76µm) | Phosphor Bronze | 6 | 2 |
