| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Gender |
Contact Finish |
Color |
Mounting Type |
Number of Positions |
Pitch |
Operating Temperature |
Read Out |
Contact Type |
Card Type |
Card Thickness |
Flange Feature |
Termination |
Contact Finish Thickness |
Contact Material |
Number of Positions/Bay/Row |
Number of Rows |
|
FX27-80S-0.8SV
CONN PCI EXP FMALE 80POS 0.031
|
Contact |
600 - immediate |
Hirose Electric Co Ltd |
300 |
ROHS3 Compliant |
FX27 |
Tape & Reel (TR) |
Active |
Datasheet
|
Board Guide, Pick and Place, Solder Retention | Female | Gold | Black | Surface Mount | 80 | 0.031" (0.80mm) | -55°C ~ 85°C | Dual | - | PCI Express™ | 0.063" (1.60mm) | - | Solder | - | Copper Alloy | 40 | 2 |
|
FX27-80S-0.8SV
CONN PCI EXP FMALE 80POS 0.031
|
Contact |
1105 - immediate |
Hirose Electric Co Ltd |
1 |
ROHS3 Compliant |
FX27 |
Cut Tape (CT) |
Active |
Datasheet
|
Board Guide, Pick and Place, Solder Retention | Female | Gold | Black | Surface Mount | 80 | 0.031" (0.80mm) | -55°C ~ 85°C | Dual | - | PCI Express™ | 0.063" (1.60mm) | - | Solder | - | Copper Alloy | 40 | 2 |
|
HSEC8-113-01-L-RA-L2-TR
CONN EDGE DUAL FMALE 26POS 0.031
|
Contact |
- immediate |
Samtec Inc. |
250 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Tape & Reel (TR) |
Active |
Datasheet
|
Board Guide, Latches | Female | Gold | Black | Surface Mount, Right Angle | 26 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 13 | 2 |
|
HSEC8-113-01-L-RA-L2-TR
CONN EDGE DUAL FMALE 26POS 0.031
|
Contact |
222 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Cut Tape (CT) |
Active |
Datasheet
|
Board Guide, Latches | Female | Gold | Black | Surface Mount, Right Angle | 26 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 13 | 2 |
|
HSEC8-113-01-L-RA-L2-TR
CONN EDGE DUAL FMALE 26POS 0.031
|
Contact |
222 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Digi-Reel® |
Active |
Datasheet
|
Board Guide, Latches | Female | Gold | Black | Surface Mount, Right Angle | 26 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 13 | 2 |
|
10039755-10003TLF
CONN PCI EXP FMALE 164POS 0.039
|
Contact |
2010 - immediate |
Amphenol CS (FCI) |
1 |
RoHS Compliant |
- |
Tray |
Active |
Datasheet
|
Board Guide, Locking Ramp | Female | Gold | Black | Through Hole | 164 | 0.039" (1.00mm) | -55°C ~ 85°C | Dual | Cantilever | PCI Express™ | 0.062" (1.57mm) | - | Press-Fit | 30.0µin (0.76µm) | Copper Alloy | - | 2 |
|
MEC5-030-01-L-RA-W2-TR
CONN EDGE DUAL FMALE 60POS 0.020
|
Contact |
500 - immediate |
Samtec Inc. |
250 |
ROHS3 Compliant |
MEC5 - RA |
Tape & Reel (TR) |
Active |
Datasheet
|
Board Guide, Solder Retention | Female | Gold | Black | Surface Mount, Right Angle | 60 | 0.020" (0.50mm) | -55°C ~ 125°C | Dual | - | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Copper Alloy | 30 | 2 |
|
MEC5-030-01-L-RA-W2-TR
CONN EDGE DUAL FMALE 60POS 0.020
|
Contact |
860 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
MEC5 - RA |
Cut Tape (CT) |
Active |
Datasheet
|
Board Guide, Solder Retention | Female | Gold | Black | Surface Mount, Right Angle | 60 | 0.020" (0.50mm) | -55°C ~ 125°C | Dual | - | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Copper Alloy | 30 | 2 |
|
MEC5-030-01-L-RA-W2-TR
CONN EDGE DUAL FMALE 60POS 0.020
|
Contact |
860 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
MEC5 - RA |
Digi-Reel® |
Active |
Datasheet
|
Board Guide, Solder Retention | Female | Gold | Black | Surface Mount, Right Angle | 60 | 0.020" (0.50mm) | -55°C ~ 125°C | Dual | - | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Copper Alloy | 30 | 2 |
|
6364666-1
CONN EDGE DUAL FML 62POS 0.100
|
Contact |
288 - immediate |
TE Connectivity AMP Connectors |
1 |
ROHS3 Compliant |
Standard Edge II |
Bulk |
Active |
Datasheet
|
Latches | Female | Gold | Black | Through Hole | 62 (61 Loaded) | 0.100" (2.54mm) | -55°C ~ 85°C | Dual | - | Non Specified - Dual Edge | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | - | Solder | 30.0µin (0.76µm) | Phosphor Bronze | - | 2 |
|

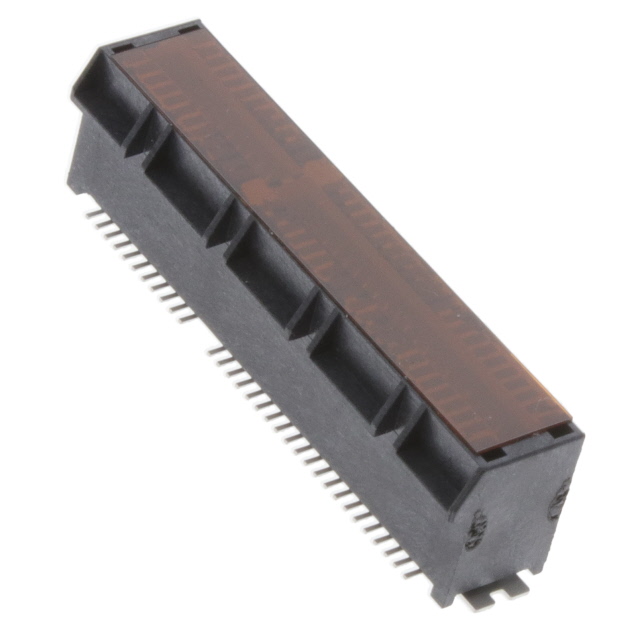

3-2337939-6
CONN PCI EXP FMALE 64POS 0.039
|
Contact |
72 - immediate |
TE Connectivity AMP Connectors |
1 |
ROHS3 Compliant |
- |
Tray |
Active |
Datasheet
|
Board Guide, Locking Ramp, Pick and Place, Solder Retention | Female | Gold | Black | Surface Mount | 64 | 0.039" (1.00mm) | -40°C ~ 85°C | Dual | Cantilever | PCI Express™ | 0.062" (1.57mm) | - | Solder | Flash | Copper Alloy | 11; 21 | 2 |
|
HSEC8-180-01-L-DV-A
CONN EDGE DUAL FML 160POS 0.031
|
Contact |
463 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Tray |
Active |
Datasheet
|
Board Guide | Female | Gold | Black | Surface Mount | 160 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 80 | 2 |
|
EBM22DRTH
CONN EDGE DUAL FMALE 44POS 0.156
|
Contact |
68 - immediate |
Sullins Connector Solutions |
1 |
ROHS3 Compliant |
- |
Tray |
Active |
Datasheet
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HSEC8-120-01-L-RA-TR
CONN EDGE DUAL FMALE 40POS 0.031
|
Contact |
500 - immediate |
Samtec Inc. |
250 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Tape & Reel (TR) |
Active |
Datasheet
|
Board Guide | Female | Gold | Black | Surface Mount, Right Angle | 40 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 20 | 2 |
|
HSEC8-120-01-L-RA-TR
CONN EDGE DUAL FMALE 40POS 0.031
|
Contact |
857 - immediate |
Samtec Inc. |
1 |
ROHS3 Compliant |
Edge Rate™ HSEC8 |
Cut Tape (CT) |
Active |
Datasheet
|
Board Guide | Female | Gold | Black | Surface Mount, Right Angle | 40 | 0.031" (0.80mm) | -55°C ~ 125°C | Dual | Cantilever | Non Specified - Dual Edge | 0.062" (1.57mm) | - | Solder | 10.0µin (0.25µm) | Beryllium Copper | 20 | 2 |
