| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Package / Case |
Filter Type |
Size / Dimension |
Mounting Type |
Number of Lines |
Operating Temperature |
Approval Agency |
Ratings |
Height (Max) |
Voltage Rating - AC |
Voltage Rating - DC |
Current Rating (Max) |
DC Resistance (DCR) (Max) |
Inductance @ Frequency |
Impedance @ Frequency |
|
LF2823NP-683
CMC 68MH 600MA 2LN TH
|
Contact |
- immediate |
Sumida America Inc. |
150 |
ROHS3 Compliant |
LF |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.122" L x 1.122" W (28.50mm x 28.50mm) | Through Hole | 2 | - | - | - | 0.945" (24.00mm) | - | - | 600mA | 1.82Ohm | 68 mH @ 1 kHz | - |
|

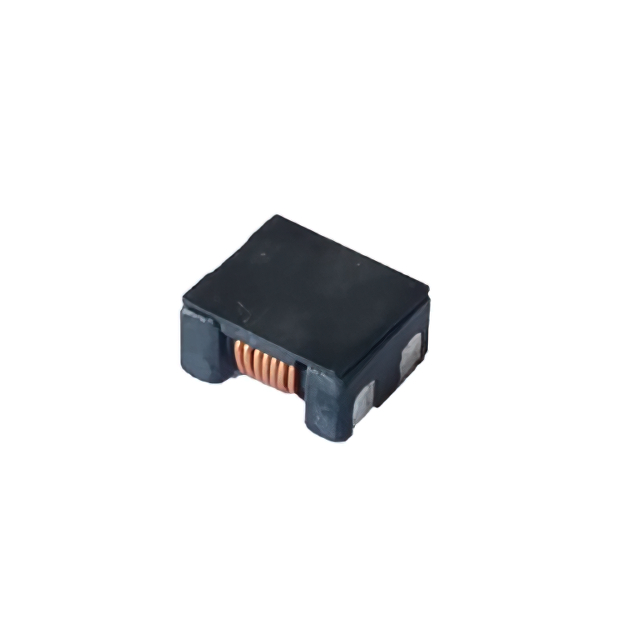

CMLA1211-701-R
CMC 8A 2LN 700 OHM SMD AEC-Q200
|
Contact |
- immediate |
Eaton - Electronics Division |
500 |
ROHS3 Compliant |
CMLA |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.512" L x 0.453" W (13.00mm x 11.50mm) | Surface Mount | 2 | -40°C ~ 125°C | - | AEC-Q200 | 0.276" (7.00mm) | - | 100V | 8A | 6mOhm | 700 Ohms @ 100 MHz | - |
|
CMLA1211-701-R
CMC 8A 2LN 700 OHM SMD AEC-Q200
|
Contact |
- immediate |
Eaton - Electronics Division |
1 |
ROHS3 Compliant |
CMLA |
Cut Tape (CT) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.512" L x 0.453" W (13.00mm x 11.50mm) | Surface Mount | 2 | -40°C ~ 125°C | - | AEC-Q200 | 0.276" (7.00mm) | - | 100V | 8A | 6mOhm | 700 Ohms @ 100 MHz | - |
|
DLP1NDN350HL4L
CMC 100MA 4LN 35 OHM SMD
|
Contact |
- immediate |
Murata Electronics |
5000 |
ROHS3 Compliant |
DLP1N |
Tape & Reel (TR) |
Active |
Datasheet
|
- | 0603 (1608 Metric), 8 Lead | Signal Line | 0.059" L x 0.026" W (1.50mm x 0.65mm) | Surface Mount | 4 | -40°C ~ 85°C | - | - | 0.020" (0.50mm) | - | 5V | 100mA | 2.25Ohm | 35 Ohms @ 100 MHz | - |
|
DLP1NDN670HL4L
CMC 80MA 4LN 67 OHM SMD
|
Contact |
- immediate |
Murata Electronics |
5000 |
ROHS3 Compliant |
DLP1N |
Tape & Reel (TR) |
Active |
Datasheet
|
- | 0603 (1608 Metric), 8 Lead | Signal Line | 0.059" L x 0.026" W (1.50mm x 0.65mm) | Surface Mount | 4 | -40°C ~ 85°C | - | - | 0.020" (0.50mm) | - | 5V | 80mA | 3.63Ohm | 67 Ohms @ 100 MHz | - |
|
DLP1NDN900HL4L
CMC 60MA 4LN 90 OHM SMD
|
Contact |
- immediate |
Murata Electronics |
5000 |
ROHS3 Compliant |
DLP1N |
Tape & Reel (TR) |
Active |
Datasheet
|
- | 0603 (1608 Metric), 8 Lead | Signal Line | 0.059" L x 0.026" W (1.50mm x 0.65mm) | Surface Mount | 4 | -40°C ~ 85°C | - | - | 0.020" (0.50mm) | - | 5V | 60mA | 4.63Ohm | 90 Ohms @ 100 MHz | - |
|
SN12P-500
NMC 100.0UH 5.0A 0.0400 OHM TH
|
Contact |
- immediate |
KEMET |
350 |
ROHS3 Compliant |
SN |
Tray |
Active |
Datasheet
|
- | Vertical, No Base, 2 PC Pin | Power Line | - | Through Hole | 2 | -25°C ~ 105°C | - | - | - | - | - | - | - | 100 µH @ 100 kHz | - |
|
744795080
CMC 80UH 500MA 2LN 1.34 OHM TH
|
Contact |
- immediate |
Würth Elektronik |
600 |
ROHS3 Compliant |
WE |
Tape & Reel (TR) |
Obsolete |
Datasheet
|
- | Horizontal, 4 PC Pad | - | 0.327" L x 0.276" W (8.30mm x 7.00mm) | Through Hole | 2 | -40°C ~ 85°C | - | - | 0.217" (5.50mm) | - | 80V | 500mA | 60mOhm | 80 µH @ 1 kHz | 1.34 Ohms @ 100 MHz |
|
OWICM1006T-121
CMC 120UH@100KHZ 2.5A 2LN 0.46K
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
500 |
ROHS3 Compliant |
CMC 1006T |
Tape & Reel (TR) |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 2.5A | 25mOhm | 120 µH @ 100 kHz | 460 Ohms @ 5 MHz | - |
|
OWICM1006T-121
CMC 120UH@100KHZ 2.5A 2LN 0.46K
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
1 |
ROHS3 Compliant |
CMC 1006T |
Cut Tape (CT) |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 2.5A | 25mOhm | 120 µH @ 100 kHz | 460 Ohms @ 5 MHz | - |
|
OWICM1006T-121
CMC 120UH@100KHZ 2.5A 2LN 0.46K
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
1 |
ROHS3 Compliant |
CMC 1006T |
Digi-Reel® |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 2.5A | 25mOhm | 120 µH @ 100 kHz | 460 Ohms @ 5 MHz | - |
|
OWICM1006C-222
CMC 2200UH@100KHZ 0.75A 2LN 10.0
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
500 |
ROHS3 Compliant |
CMC 1006C |
Tape & Reel (TR) |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 750mA | 300mOhm | 2200 µH @ 100 kHz | 10 kOhms @ 2 MHz | - |
|
OWICM1006C-222
CMC 2200UH@100KHZ 0.75A 2LN 10.0
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
1 |
ROHS3 Compliant |
CMC 1006C |
Cut Tape (CT) |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 750mA | 300mOhm | 2200 µH @ 100 kHz | 10 kOhms @ 2 MHz | - |
|
OWICM1006C-222
CMC 2200UH@100KHZ 0.75A 2LN 10.0
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
1 |
ROHS3 Compliant |
CMC 1006C |
Digi-Reel® |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 750mA | 300mOhm | 2200 µH @ 100 kHz | 10 kOhms @ 2 MHz | - |
|
OWICM1006T-251
CMC 250UH@100KHZ 2.0A 2LN 0.97K
|
Contact |
- immediate |
Ole Wolff Electronics Inc |
500 |
ROHS3 Compliant |
CMC 1006T |
Tape & Reel (TR) |
Active |
Datasheet
|
Horizontal, 4 PC Pad | Power, Signal Line | 0.394" L x 0.343" W (10.00mm x 8.70mm) | Surface Mount | 2 | -40°C ~ 125°C | - | - | 0.256" (6.50mm) | - | 80V | 2A | 35mOhm | 250 µH @ 100 kHz | 970 Ohms @ 5 MHz | - |
