| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Package / Case |
Filter Type |
Size / Dimension |
Mounting Type |
Number of Lines |
Operating Temperature |
Approval Agency |
Ratings |
Height (Max) |
Voltage Rating - AC |
Voltage Rating - DC |
Current Rating (Max) |
DC Resistance (DCR) (Max) |
Inductance @ Frequency |
|
CMF61-1504SM
COMMON MODE TRANSFORMER CHOKE
|
Contact |
- immediate |
Gowanda Electronics |
1050 |
Vendor undefined |
CMF61SM |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.285" L x 0.285" W (7.24mm x 7.24mm) | Surface Mount | 2 | -55°C ~ 125°C | - | - | 0.210" (5.33mm) | - | - | 240mA | 500mOhm | 1.5 mH @ 10 kHz |
|
CMF61-2204SM
COMMON MODE TRANSFORMER CHOKE
|
Contact |
- immediate |
Gowanda Electronics |
1050 |
Vendor undefined |
CMF61SM |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.285" L x 0.285" W (7.24mm x 7.24mm) | Surface Mount | 2 | -55°C ~ 125°C | - | - | 0.210" (5.33mm) | - | - | 180mA | 750mOhm | 2.2 mH @ 10 kHz |
|
CMF61-2203SM
COMMON MODE TRANSFORMER CHOKE
|
Contact |
- immediate |
Gowanda Electronics |
1050 |
Vendor undefined |
CMF61SM |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.285" L x 0.285" W (7.24mm x 7.24mm) | Surface Mount | 2 | -55°C ~ 125°C | - | - | 0.210" (5.33mm) | - | - | 1A | 60mOhm | 220 µH @ 10 kHz |
|
CMF61-2502SM
COMMON MODE TRANSFORMER CHOKE
|
Contact |
- immediate |
Gowanda Electronics |
1050 |
Vendor undefined |
CMF61SM |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 0.285" L x 0.285" W (7.24mm x 7.24mm) | Surface Mount | 2 | -55°C ~ 125°C | - | - | 0.210" (5.33mm) | - | - | 3A | 10mOhm | 25 µH @ 10 kHz |
|
CMT908-V2-B
CMC 4MH 5.2A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.450" L x 0.800" W (36.83mm x 20.32mm) | Through Hole | 2 | -40°C ~ 125°C | CSA, IEC, UL, VDE | - | 1.500" (38.10mm) | 1500V (1.5kV) | - | 5.2A | 40mOhm | 4 mH @ 10 kHz |
|
CMT908-V3-B
CMC 8MH 3.2A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.450" L x 0.800" W (36.83mm x 20.32mm) | Through Hole | 2 | -40°C ~ 125°C | CSA, IEC, UL, VDE | - | 1.500" (38.10mm) | 1500V (1.5kV) | - | 3.2A | 120mOhm | 8 mH @ 10 kHz |
|
CMF3-2504SM
COMMON MODE TRANSFORMER CHOKE
|
Contact |
- immediate |
Gowanda Electronics |
190 |
Vendor undefined |
CMF3SM |
Tape & Reel (TR) |
Active |
Datasheet
|
- | Horizontal, 4 PC Pad | Power Line | 1.058" L x 1.058" W (26.87mm x 26.87mm) | Surface Mount | 2 | -55°C ~ 125°C | - | - | 0.423" (10.74mm) | - | - | 2.2A | 150mOhm | 2.5 mH @ 1 kHz |
|
CMT-8109
CMC 30MH 2.3A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.350" L x 0.800" W (34.29mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.450" (36.83mm) | 1500V (1.5kV) | - | 2.3A | 330mOhm | 30 mH @ 1 kHz |
|
CMT-8114
CMC 2.5MH 12.5A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.450" L x 0.800" W (36.83mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.500" (38.10mm) | 1500V (1.5kV) | - | 12.5A | 11mOhm | 2.5 mH @ 1 kHz |
|
CMT-8109-B
CMC 30MH 2.3A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.350" L x 0.800" W (34.29mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.450" (36.83mm) | 1500V (1.5kV) | - | 2.3A | 330mOhm | 30 mH @ 1 kHz |
|

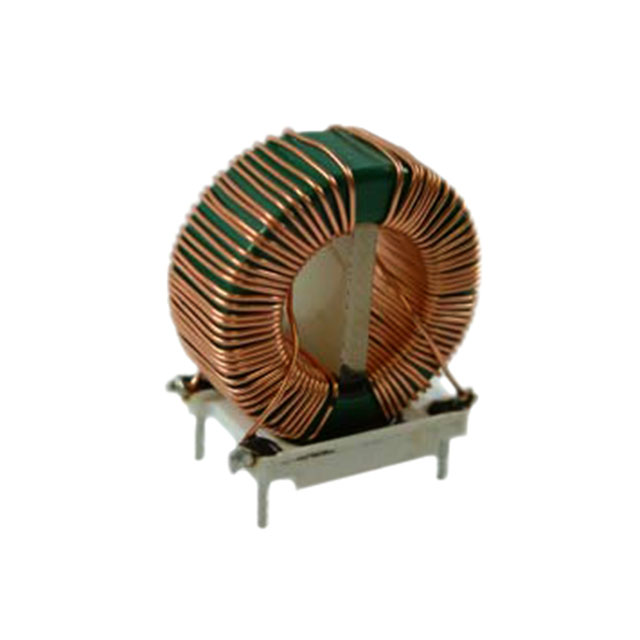

CMT-8110-B
CMC 20MH 2.9A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.350" L x 0.800" W (34.29mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.450" (36.83mm) | 1500V (1.5kV) | - | 2.9A | 210mOhm | 20 mH @ 1 kHz |
|

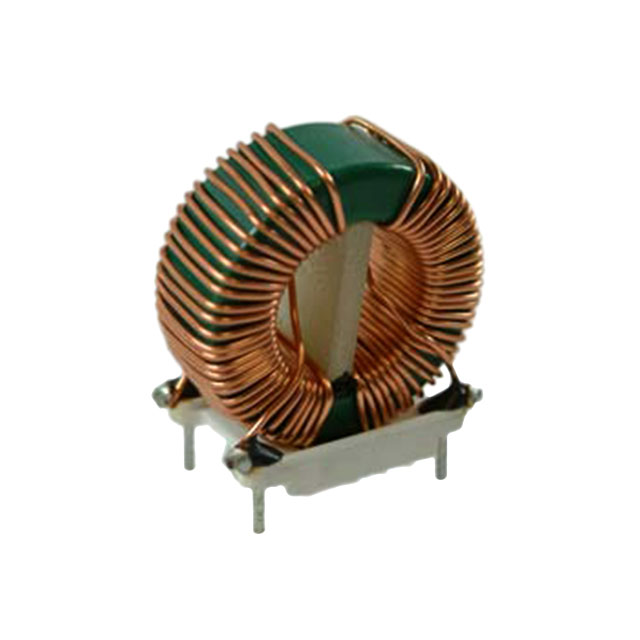

CMT-8111-B
CMC 12MH 4A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.350" L x 0.800" W (34.29mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.450" (36.83mm) | 1500V (1.5kV) | - | 4A | 110mOhm | 12 mH @ 1 kHz |
|

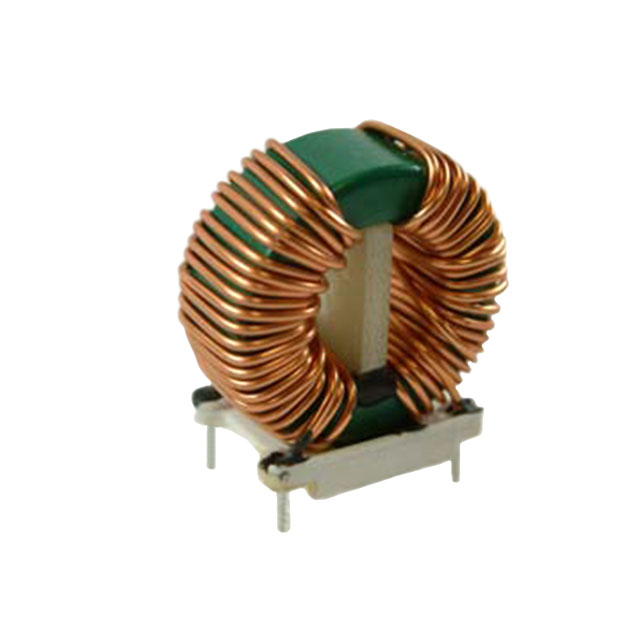

CMT-8112-B
CMC 8MH 5.6A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.350" L x 0.800" W (34.29mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.450" (36.83mm) | 1500V (1.5kV) | - | 5.6A | 55mOhm | 8 mH @ 1 kHz |
|
CMT-8113-B
CMC 5MH 8.9A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.450" L x 0.800" W (36.83mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.500" (38.10mm) | 1500V (1.5kV) | - | 8.9A | 22mOhm | 5 mH @ 1 kHz |
|

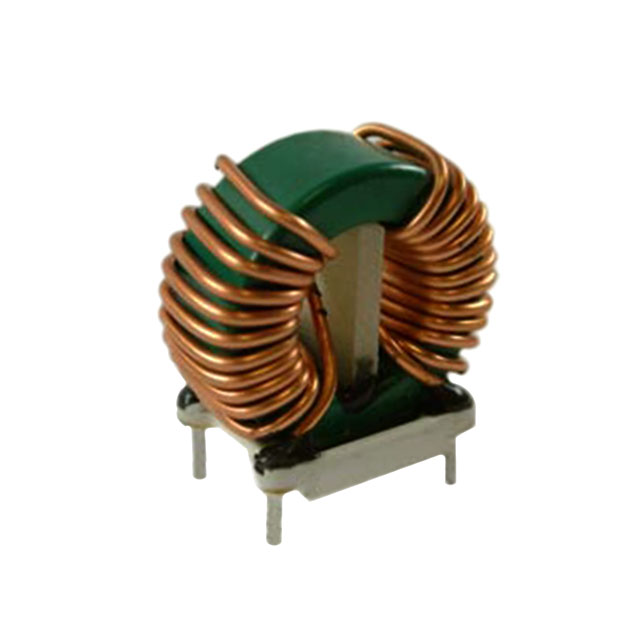

CMT-8114-B
CMC 2.5MH 12.5A 2LN TH ESD
|
Contact |
- immediate |
Triad Magnetics |
1 |
ROHS3 Compliant |
CMT |
Bulk |
Active |
Datasheet
|
- | Vertical, 4 PC Pin | Power Line | 1.450" L x 0.800" W (36.83mm x 20.32mm) | Through Hole | 2 | -55°C ~ 105°C | CSA, IEC, UL, VDE | - | 1.500" (38.10mm) | 1500V (1.5kV) | - | 12.5A | 11mOhm | 2.5 mH @ 1 kHz |
