Results : 5078 products

Mfr Part #	Price	Stock ?	Manufacturer	Min order	RoHS status	Seri	Package	Part Status	Datasheet	Tolerance	Material	Diameter	Length	Width	Height	Core Type	Supplier Device Package	Inductance Factor (Al)	Initial Permeability (µi)	Finish	Gap	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm	Effective Area (Ae) mm²	Effective Magnetic Volume (Ve) mm³
0077737A7 FERRITE CORE TOROID 204NH KOOLMU	Contact	27 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	Kool Mµ	2.917" (74.09mm)	-	-	1.378" (35.00mm)	Toroid	-	204 nH	60	Coated	Ungapped	184.0	497.0	91400.0	-
0077102A7 FERRITE CORE TOROID 48NH KOOL MU	Contact	74 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	Kool Mu	4.055" (103.00mm)	-	-	0.705" (17.91mm)	Toroid	-	48 nH	26	Coated	Ungapped	243.0	358.0	86900.0	-
5967003821 FERRITE CORE TOROID 55NH 67	Contact	42 - immediate	Fair-Rite Products Corp.	1	ROHS3 Compliant	-	Box	Active	Datasheet	-25%, +35%	67	2.472" (62.80mm)	-	-	0.539" (13.70mm)	Toroid	-	55 nH	40	Plastic	Ungapped	0.92	145.0	158.0	22800.0

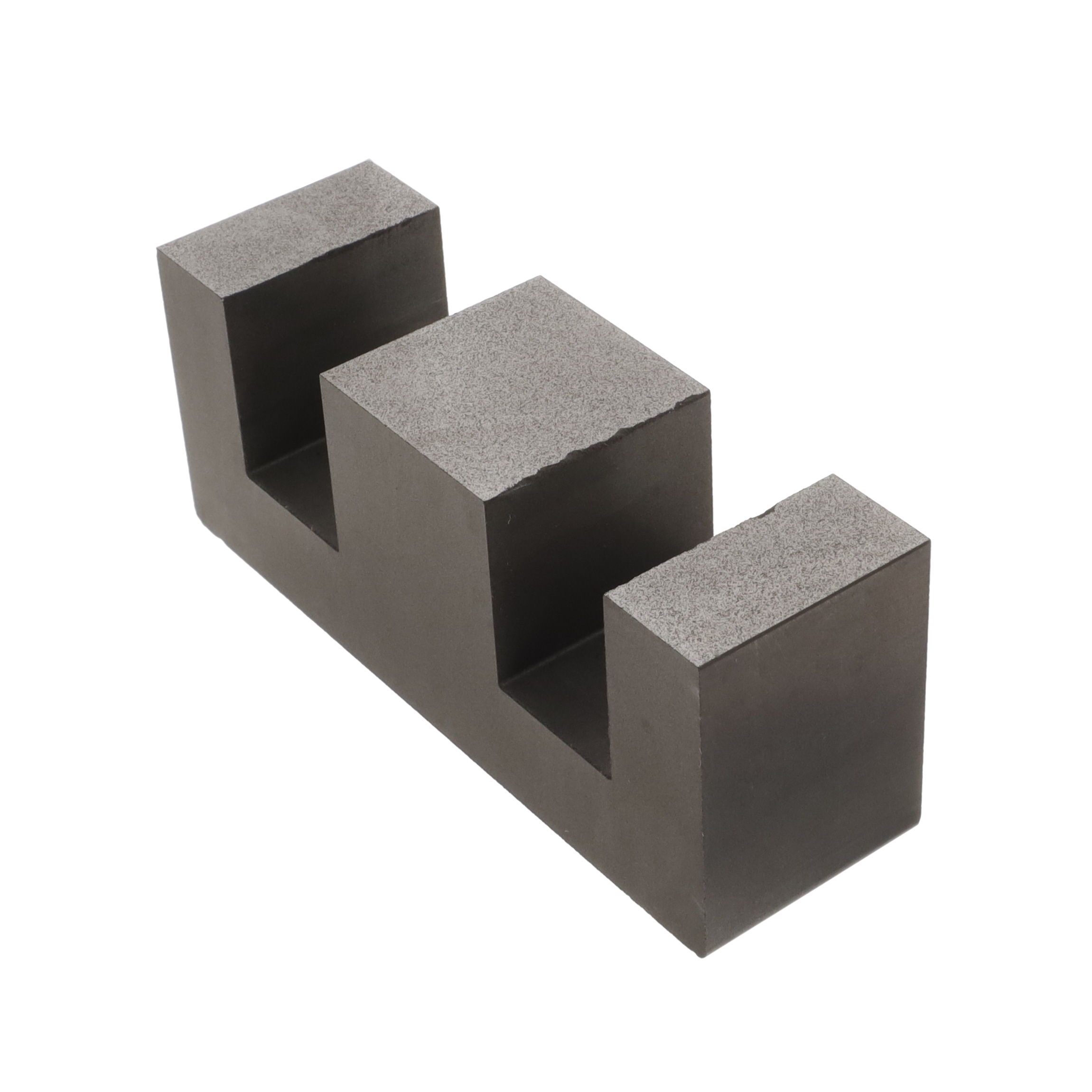

00K114LE060 KOOL MU 114L E-CORE	Contact	61 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	Kool Mu	-	4.500" (114.30mm)	1.376" (34.94mm)	1.818" (46.18mm)	E	-	445 nH	60	Uncoated	Ungapped	215.0	1220.0	262000.0	-
0079617A7 FERRITE CORE TOROID 189NH KOOLMU	Contact	42 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	Kool Mu MAX	2.440" (61.98mm)	-	-	0.984" (25.00mm)	Toroid	-	189 nH	60	Coated	Ungapped	144.0	360.0	51800.0	-
PC95SP100X100X5 FERRITE CORE SP PCS95 1PCS	Contact	88 - immediate	TDK Corporation	1	ROHS3 Compliant	SP	Tray	Active	Datasheet	-	PC95	-	3.937" (100.00mm)	3.937" (100.00mm)	0.197" (5.00mm)	SP	SP 100 x 100 x 5	Uncoated	Ungapped	-	-	-	-	-	-
I93/28/30-3C94 FERRITE CORE I 3C94	Contact	49 - immediate	Ferroxcube	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	-	3C94	-	3.661" (93.00mm)	1.181" (30.00mm)	1.083" (27.50mm)	I	I 93 x 28 x 30	Uncoated	-	-	-	-	-	-	-
B64290L0084X087 FERRITE CORE TOROID 2.88UH N87	Contact	64 - immediate	EPCOS - TDK Electronics	1	ROHS3 Compliant	TX102/66/15	Box	Active	Datasheet	±25%	N87	4.126" (104.80mm)	-	-	0.650" (16.50mm)	Toroid	-	2.88 µH	2200	Epoxy	Ungapped	0.96	255.3	267.2	68220.0
U100/57/25-3C94 FERRITE CORE U 3C94	Contact	78 - immediate	Ferroxcube	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	-	3C94	-	4.000" (101.60mm)	1.000" (25.40mm)	2.248" (57.10mm)	U	U 100 x 57 x 25	Uncoated	-	-	-	-	-	-	-
B66894G0000X197 FERRITE CORE E N97	Contact	23 - immediate	EPCOS - TDK Electronics	1	ROHS3 Compliant	E100/60/28	Bulk	Active	Datasheet	-20%, +30%	N97	-	3.949" (100.30mm)	1.083" (27.50mm)	2.339" (59.40mm)	E	E 100/60/28	Uncoated	Ungapped	2020.0	0.373	274.0	735.0	690.0	201390.0
E100/60/28-3C92 FERRITE CORE E 3C92	Contact	18 - immediate	Ferroxcube	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	-	3C92	-	3.949" (100.30mm)	1.083" (27.50mm)	2.339" (59.40mm)	E	E 100 x 60 x 28	Uncoated	-	-	-	-	-	-	-
B64290L0730X065 FERRITE CORE TOROID 6.28UH T65	Contact	52 - immediate	EPCOS - TDK Electronics	1	ROHS3 Compliant	TX87/54.3/13.5	Box	Active	Datasheet	±30%	T65	3.516" (89.30mm)	-	-	0.573" (14.80mm)	Toroid	-	6.28 µH	5000	Epoxy	Ungapped	0.99	213.9	216.7	46360.0
C058195A2 FERRITE CORE TOROID 287NH HI FLX	Contact	93 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	High Flux	2.252" (57.20mm)	-	-	0.598" (15.20mm)	Toroid	-	287 nH	125	Coated	Ungapped	125.0	229.0	28600.0	-
0058726A2 FERRITE CORE TOROID 175NH HI FLX	Contact	92 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	High Flux	2.028" (51.51mm)	-	-	0.850" (21.59mm)	Toroid	-	175 nH	60	Coated	Ungapped	113.5	262.0	29700.0	-
0078337A7 FERRITE CORE TOROID 68NH XFLUX	Contact	22 - immediate	Magnetics, a division of Spang & Co.	1	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	XFlux	5.219" (132.56mm)	-	-	1.000" (25.40mm)	Toroid	-	68 nH	26	Coated	Ungapped	324.0	678.0	220000.0	-
