| Chọn |
Mfr Part # |
Giá |
Stock ? |
Nhà sản xuất |
Số lượng đặt tối thiểu |
RoHS status |
Seri |
Kiểu đóng gói |
Trạng thái sản phẩm |
Tài liệu |
Features |
Mounting Type |
Coil Voltage |
Operating Temperature |
Termination Style |
Approval Agency |
Relay Type |
Coil Current |
Coil Type |
Seal Rating |
Contact Material |
Contact Form |
Contact Rating (Current) |
Switching Voltage |
Must Release Voltage |
Must Operate Voltage |
Operate Time |
Release Time |
Grade |
Coil Insulation |
Qualification |
Load - Max Switching |
|
T77V1D10-05
RELAY GEN PURPOSE SPST 10A 5V
|
Liên hệ |
419 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
T77 |
Bulk |
Active |
Tài liệu
|
- | Through Hole | 5VDC | -30u00b0C ~ 85u00b0C | PC Pin | cURus, VDE | General Purpose | 90 mA | Non Latching | Sealed - Flux Protection | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 0.25 VDC | 3.75 VDC | 10 ms | 4 ms | - | Class F | - | 2500VA, 300W |
|
J115F11A220VACS6
RELAY GEN PURPOSE SPST 40A 220V
|
Liên hệ |
584 - immediate |
CIT Relay and Switch |
1 |
Request Inventory Verification |
J115F1 |
Tube |
Active |
Tài liệu
|
- | Through Hole | 220VAC | -55u00b0C ~ 125u00b0C | PC Pin | cURus, TUV | General Purpose | 16.3 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 66 VAC | 165 VAC | 15 ms | 10 ms | - | Class F | - | 9600VA, 1120W |
|
AZSR131-1AE-24D(200)
RELAY EV CHG SOLAR SPST 35A 24V
|
Liên hệ |
919 - immediate |
American Zettler |
1 |
ROHS3 Compliant |
AZSR131 |
Tray |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, cURus, TUV | EV Charging, Solar | 58.5 mA | Non Latching | - | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 2.4 VDC | 16.8 VDC | 20 ms | 10 ms | - | Class F | - | 9695VA |
|
JW2ASN-B-DC24V
RELAY GEN PURPOSE DPST 5A 24V
|
Liên hệ |
1999 - immediate |
Panasonic Electric Works |
1 |
ROHS3 Compliant |
JW |
Tray |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, UR, VDE | General Purpose | 22 mA | Non Latching | Sealed - Fully | Silver Alloy | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 2.4 VDC | 16.8 VDC | 15 ms | 5 ms | - | Class B | - | 1250VA, 150W |
|
J115F11C24VDCS6.6
RELAY GEN PURPOSE SPDT 40A 24V
|
Liên hệ |
588 - immediate |
CIT Relay and Switch |
1 |
Request Inventory Verification |
J115F1 |
Tube |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -55u00b0C ~ 125u00b0C | PC Pin | cURus, TUV | General Purpose | 25 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 2.4 VDC | 18 VDC | 15 ms | 10 ms | - | Class F | - | 9600VA, 1120W |
|
G2RL-1A-E-CV DC24
RELAY GEN PURPOSE SPST 16A 24V
|
Liên hệ |
4210 - immediate |
Omron Electronics Inc-EMC Div |
1 |
ROHS3 Compliant |
G2RL |
Tube |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -40u00b0C ~ 105u00b0C | PC Pin | CQC, CSA, UR, VDE | General Purpose | 16.7 mA | Non Latching | Sealed - Flux Protection | Silver Alloy, Cadmium Free | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 2.4 VDC | 16.8 VDC | 15 ms | 5 ms | - | - | - | 7040VA, 4800W |
|
RT184012
RELAY GEN PURPOSE SPST 10A 12V
|
Liên hệ |
995 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
RT1, SCHRACK |
Tube |
Active |
Tài liệu
|
- | Through Hole | 12VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, cURus, VDE | General Purpose | 14.2 mA | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 1.2 VDC | 9 VDC | 10 ms | 8 ms | - | Class F | - | 4000VA |
|
J115F11A5VDCSH.6
RELAY GEN PURPOSE SPST 40A 5V
|
Liên hệ |
381 - immediate |
CIT Relay and Switch |
1 |
Request Inventory Verification |
J115F1 |
Tube |
Active |
Tài liệu
|
- | Through Hole | 5VDC | -55u00b0C ~ 125u00b0C | PC Pin | cURus, TUV | General Purpose | 119 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 0.5 VDC | 3.75 VDC | 15 ms | 10 ms | - | Class F | - | 9600VA, 1120W |
|

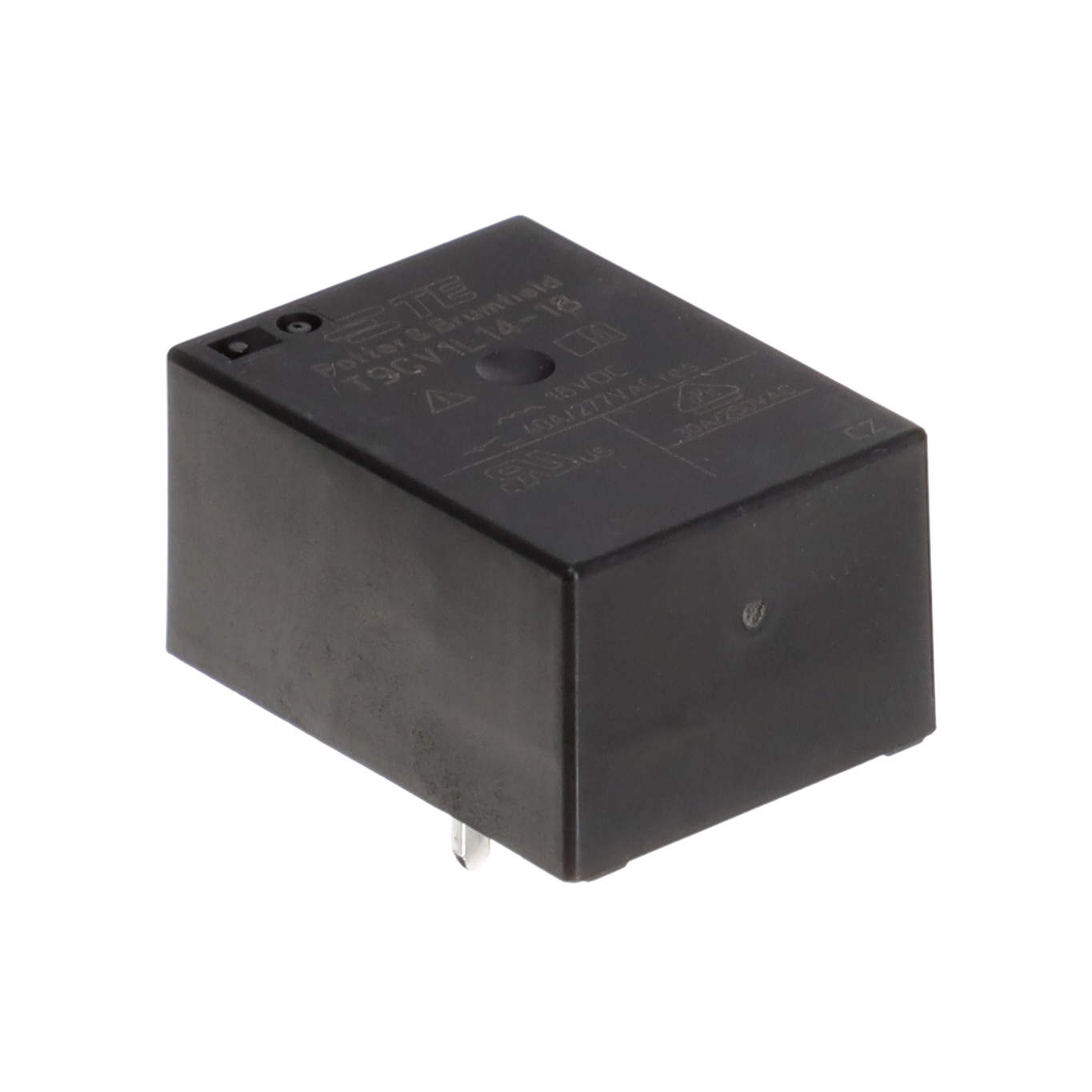

T9GV1L14-18
RELAY GEN PURPOSE SPST 30A 18V
|
Liên hệ |
3908 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
T9G |
Bulk |
Active |
Tài liệu
|
- | Through Hole | 18VDC | -40u00b0C ~ 105u00b0C | PC Pin | CQC, cURus, VDE | General Purpose | 50 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 1.8 VDC | 13.5 VDC | 15 ms | 22 ms | - | Class B | 14400VA | - |
|
J115F31C110VDCS.9
RELAY GEN PURPOSE SPDT 40A 110V
|
Liên hệ |
215 - immediate |
CIT Relay and Switch |
1 |
Request Inventory Verification |
J115F3 |
Tray |
Active |
Tài liệu
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALZ11F24W
RELAY GEN PURPOSE SPDT 16A 24V
|
Liên hệ |
842 - immediate |
Panasonic Electric Works |
1 |
ROHS3 Compliant |
ALZ |
Bulk |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -40u00b0C ~ 105u00b0C | PC Pin | cURus, VDE | General Purpose | 16.7 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 16 A | 440VAC - Max | 2.4 VDC | 16.8 VDC | 15 ms | 5 ms | - | Class F | - | 7040VA |
|
RT114006
RELAY GEN PURPOSE SPDT 12A 6V
|
Liên hệ |
5931 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
RT1, SCHRACK |
Tube |
Active |
Tài liệu
|
- | Through Hole | 6VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, cURus, VDE | General Purpose | 66.7 mA | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | SPDT (1 Form C) | 12 A | 400VAC - Max | 0.6 VDC | 4.2 VDC | 8 ms | 6 ms | - | Class F | - | 4800VA |
|
RTE44012
RELAY GEN PURPOSE DPST 8A 12V
|
Liên hệ |
3852 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
RT2, SCHRACK |
Box |
Active |
Tài liệu
|
- | Through Hole | 12VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, cURus, VDE | General Purpose | 33.3 mA | Non Latching | Sealed - Fully | Silver Nickel (AgNi) | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 1.2 VDC | 8.4 VDC | 8 ms | 6 ms | - | Class F | - | 3200VA |
|
RTE44024
RELAY GEN PURPOSE DPST 8A 24V
|
Liên hệ |
2771 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
RT2, SCHRACK |
Tube |
Active |
Tài liệu
|
- | Through Hole | 24VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, cURus, VDE | General Purpose | 16.7 mA | Non Latching | Sealed - Fully | Silver Nickel (AgNi) | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 2.4 VDC | 16.8 VDC | 8 ms | 6 ms | - | Class F | - | 3200VA |
|
RT114018
RELAY GEN PURPOSE SPDT 12A 18V
|
Liên hệ |
714 - immediate |
TE Connectivity Potter & Brumfield Relays |
1 |
ROHS3 Compliant |
RT1, SCHRACK |
Bulk |
Active |
Tài liệu
|
- | Through Hole | 18VDC | -40u00b0C ~ 85u00b0C | PC Pin | CQC, CSA, cURus, VDE | General Purpose | 23.4 mA | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | SPDT (1 Form C) | 12 A | 400VAC - Max | 1.8 VDC | 12.6 VDC | 8 ms | 6 ms | - | Class F | - | 4800VA |
