| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Mounting Type |
Coil Voltage |
Operating Temperature |
Termination Style |
Approval Agency |
Relay Type |
Coil Current |
Coil Type |
Seal Rating |
Contact Material |
Contact Form |
Contact Rating (Current) |
Switching Voltage |
Must Release Voltage |
Must Operate Voltage |
Operate Time |
Release Time |
Grade |
Coil Insulation |
Qualification |
Load - Max Switching |
|
AZ9481-1AE-9D
RELAY GEN PURPOSE SPST 10A 9V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ9481 |
Box |
Active |
Datasheet
|
- | Through Hole | 9VDC | -40°C ~ 85°C | PC Pin | TUV, UL | General Purpose | 22.2 mA | Non Latching | - | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 0.9 VDC | 7.2 VDC | 10 ms | 5 ms | - | Class F | - | 2500VA, 300W |
|
AZ9481-1A-12D
RELAY GEN PURPOSE SPST 10A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ9481 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 85°C | PC Pin | TUV, UL | General Purpose | 16.7 mA | Non Latching | - | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 1.2 VDC | 9.6 VDC | 10 ms | 5 ms | - | Class F | - | 2500VA, 300W |
|
AZ9321-1A-12DEF
RELAY GEN PURPOSE SPST 16A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ9321 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 95°C | PC Pin | CUR, UL | General Purpose | 30 mA | Non Latching | Sealed - Fully | Silver Nickel (AgNi) | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 1.2 VDC | 9 VDC | 10 ms | 5 ms | - | Class F | - | 4700VA, 480W |
|
AZ6975-1A-24DSEF
RELAY GEN PURPOSE SPST 10A 24V
|
Contact |
- immediate |
American Zettler |
500 |
ROHS3 Compliant |
AZ6975 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -40°C ~ 85°C | PC Pin | CUR, TUV, UL | General Purpose | 29.3 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2.4 VDC | 16.8 VDC | 20 ms | 8 ms | - | Class F | - | 2500VA, 300W |
|
AZ9481-1AE-12DE
RELAY GEN PURPOSE SPST 10A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ9481 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 85°C | PC Pin | TUV, UL | General Purpose | 16.7 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 1.2 VDC | 9.6 VDC | 10 ms | 5 ms | - | Class F | - | 2500VA, 300W |
|
AZ9481-1AE-12D
RELAY GEN PURPOSE SPST 10A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ9481 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 85°C | PC Pin | TUV, UL | General Purpose | 16.7 mA | Non Latching | - | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 1.2 VDC | 9.6 VDC | 10 ms | 5 ms | - | Class F | - | 2500VA, 300W |
|
PR30-9V-S-450-1C
20.5 X 10.2 X 15.3 MM, 9 V, 10 A
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR30 |
Box |
Active |
Datasheet
|
- | Through Hole | 9VDC | -40°C ~ 90°C | PC Pin | cURus | General Purpose | 50 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 0.9 VDC | 6.8 VDC | 8 ms | 5 ms | - | Class B | - | 2770VA, 150W |
|

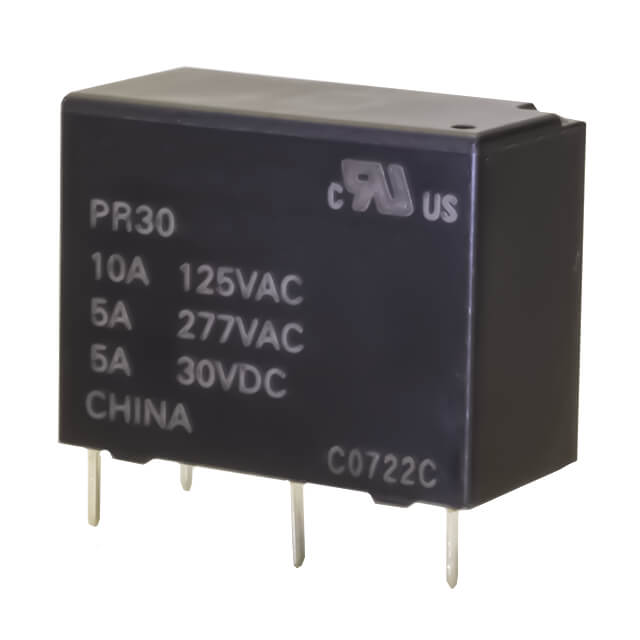

PR30-6V-450-1C-E
20.5 X 10.2 X 15.3 MM, 6 V, 10 A
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR30 |
Box |
Active |
Datasheet
|
- | Through Hole | 6VDC | -40°C ~ 90°C | PC Pin | cURus | General Purpose | 75 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 0.6 VDC | 4.5 VDC | 8 ms | 5 ms | - | Class B | - | 2770VA, 150W |
|
PR30-9V-S-450-1C-E
20.5 X 10.2 X 15.3 MM, 9 V, 10 A
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR30 |
Box |
Active |
Datasheet
|
- | Through Hole | 9VDC | -40°C ~ 90°C | PC Pin | cURus | General Purpose | 50 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 0.9 VDC | 6.8 VDC | 8 ms | 5 ms | - | Class B | - | 2770VA, 150W |
|
PR30-6V-450-1C
20.5 X 10.2 X 15.3 MM, 6 V, 10 A
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR30 |
Box |
Active |
Datasheet
|
- | Through Hole | 6VDC | -40°C ~ 90°C | PC Pin | cURus | General Purpose | 75 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 0.6 VDC | 4.5 VDC | 8 ms | 5 ms | - | Class B | - | 2770VA, 150W |
|
PR30-3V-450-1C
20.5 X 10.2 X 15.3 MM, 3 V, 10 A
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR30 |
Box |
Active |
Datasheet
|
- | Through Hole | 3VDC | -40°C ~ 90°C | PC Pin | cURus | General Purpose | 150 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 0.3 VDC | 2.3 VDC | 8 ms | 5 ms | - | Class B | - | 2770VA, 150W |
|
PR28-24V-360-1C
22 X 16 X 16.6 MM, 24 V, 16 A, S
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR28 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -40°C ~ 85°C | PC Pin | cURus | General Purpose | 15 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 2.4 VDC | 18 VDC | 10 ms | 5 ms | - | Class F | - | 4700VA, 480W |
|
PR28-15V-360-1C-E
22 X 16 X 16.6 MM, 15 V, 16 A, S
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR28 |
Box |
Active |
Datasheet
|
- | Through Hole | 15VDC | -40°C ~ 85°C | PC Pin | cURus | General Purpose | 24 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 1.5 VDC | 11.25 VDC | 10 ms | 5 ms | - | Class F | - | 4700VA, 480W |
|
PR28-24V-360-1A
22 X 16 X 16.6 MM, 24 V, 16 A, S
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR28 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -40°C ~ 85°C | PC Pin | cURus | General Purpose | 15 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 20 A | 277VAC, 30VDC - Max | 2.4 VDC | 18 VDC | 10 ms | 5 ms | - | Class F | - | 4700VA, 480W |
|
PR28-15V-360-1C
22 X 16 X 16.6 MM, 15 V, 16 A, S
|
Contact |
- immediate |
Same Sky (Formerly CUI Devices) |
1000 |
RoHS Compliant |
PR28 |
Box |
Active |
Datasheet
|
- | Through Hole | 15VDC | -40°C ~ 85°C | PC Pin | cURus | General Purpose | 24 mA | Non Latching | Sealed - Flux Protection | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 1.5 VDC | 11.25 VDC | 10 ms | 5 ms | - | Class F | - | 4700VA, 480W |
