| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Features |
Mounting Type |
Coil Voltage |
Operating Temperature |
Termination Style |
Approval Agency |
Relay Type |
Coil Current |
Coil Type |
Seal Rating |
Contact Material |
Contact Form |
Contact Rating (Current) |
Switching Voltage |
Must Release Voltage |
Must Operate Voltage |
Operate Time |
Release Time |
Grade |
Coil Insulation |
Qualification |
Load - Max Switching |
|
AZ2100-1CE-22DF
RELAY GEN PURPOSE SPDT 40A 22V
|
Contact |
- immediate |
American Zettler |
2160 |
ROHS3 Compliant |
AZ2100 |
Box |
Active |
Datasheet
|
- | Through Hole | 22VDC | -55°C ~ 105°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, VDE | General Purpose | Non Latching | - | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 2.2 VDC | - | 15 ms | 10 ms | - | Class F | - | 12000VA, 1200W | - |
|
AZ761-1CE-12DEK
RELAY GEN PURPOSE SPDT 12A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ761 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 85°C | PC Pin | CUR, UL, VDE | General Purpose | 33.3 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 12 A | 440VAC, 125VDC - Max | 1.2 VDC | 8.4 VDC | 15 ms | 8 ms | - | Class F | - | 3324VA, 360W |
|
AZ2100-1CE-24DF
RELAY GEN PURPOSE SPDT 40A 24V
|
Contact |
- immediate |
American Zettler |
2160 |
ROHS3 Compliant |
AZ2100 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -55°C ~ 105°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, VDE | General Purpose | 36.4 mA | Non Latching | - | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 2.4 VDC | 18 VDC | 15 ms | 10 ms | - | Class F | - | 12000VA, 1200W |
|
AZ2100-1C-24DF
RELAY GEN PURPOSE SPDT 40A 24V
|
Contact |
- immediate |
American Zettler |
2160 |
ROHS3 Compliant |
AZ2100 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -55°C ~ 105°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, VDE | General Purpose | 36.4 mA | Non Latching | - | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 2.4 VDC | 18 VDC | 15 ms | 10 ms | - | Class F | - | 12000VA, 1200W |
|
AZ2100-1C-22DF
RELAY GEN PURPOSE SPDT 40A 22V
|
Contact |
- immediate |
American Zettler |
2160 |
ROHS3 Compliant |
AZ2100 |
Box |
Active |
Datasheet
|
- | Through Hole | 22VDC | -55°C ~ 105°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, VDE | General Purpose | Non Latching | - | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 2.2 VDC | - | 15 ms | 10 ms | - | Class F | - | 12000VA, 1200W | - |
|
AZ2100-1CE-18DEF
RELAY GEN PURPOSE SPDT 40A 18V
|
Contact |
- immediate |
American Zettler |
2160 |
ROHS3 Compliant |
AZ2100 |
Box |
Active |
Datasheet
|
- | Through Hole | 18VDC | -55°C ~ 105°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, VDE | General Purpose | 47.4 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 1.8 VDC | 13.5 VDC | 15 ms | 10 ms | - | Class F | - | 12000VA, 1200W |
|
AZ761-1CE-24DEK
RELAY GEN PURPOSE SPDT 12A 24V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ761 |
Box |
Active |
Datasheet
|
- | Through Hole | 24VDC | -40°C ~ 85°C | PC Pin | CUR, UL, VDE | General Purpose | 16.7 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 12 A | 440VAC, 125VDC - Max | 2.4 VDC | 16.8 VDC | 15 ms | 8 ms | - | Class F | - | 3324VA, 360W |
|

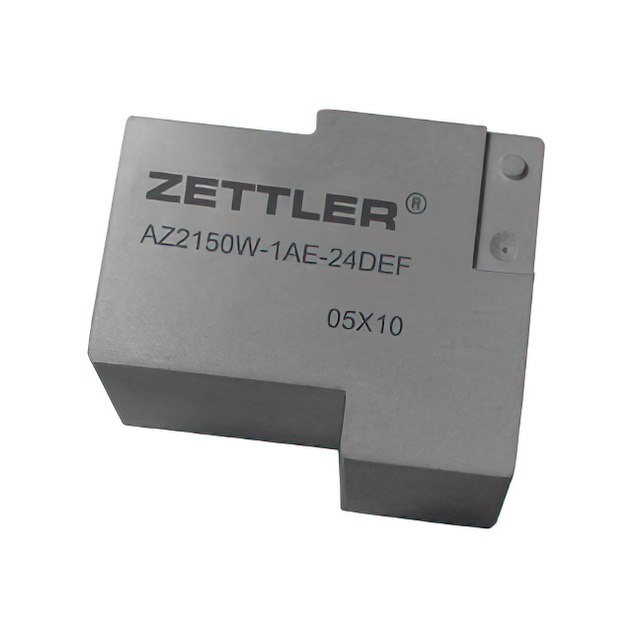

AZ2150W-1AE-5DEFT
RELAY GEN PURPOSE SPST 30A 5V
|
Contact |
- immediate |
American Zettler |
2000 |
ROHS3 Compliant |
AZ2150W |
Box |
Active |
Datasheet
|
- | Through Hole | 5VDC | -40°C ~ 85°C | PC Pin | CUR, UL, VDE | General Purpose | 222.2 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 30 A | 440VAC, 250VDC - Max | 0.5 VDC | 3.75 VDC | 15 ms | 10 ms | - | Class F | - | 8310VA, 900W |
|
AZ761-1CE-12DE
RELAY GEN PURPOSE SPDT 12A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ761 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 85°C | PC Pin | CUR, UL, VDE | General Purpose | 33.3 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 12 A | 440VAC, 125VDC - Max | 1.2 VDC | 8.4 VDC | 15 ms | 8 ms | - | Class F | - | 3324VA, 360W |
|
J115F21CL48VDCS.6
RELAY GEN PURPOSE SPDT 40A 48V
|
Contact |
- immediate |
CIT Relay and Switch |
600 |
Request Inventory Verification |
J115F2 |
Tube |
Active |
Datasheet
|
- | Through Hole | 48VDC | -55°C ~ 125°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, TUV | General Purpose | 12.5 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 4.8 VDC | 36 VDC | 15 ms | 10 ms | - | Class F | - | 11080VA, 4400W |
|
J115F21C48VDCS.6
RELAY GEN PURPOSE SPDT 40A 48V
|
Contact |
- immediate |
CIT Relay and Switch |
600 |
Request Inventory Verification |
J115F2 |
Tube |
Active |
Datasheet
|
- | Through Hole | 48VDC | -55°C ~ 125°C | PC Pin, Quick Connect - 0.250" (6.3mm) | cURus, TUV | General Purpose | 12.5 mA | Non Latching | Sealed - Fully | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 4.8 VDC | 36 VDC | 15 ms | 10 ms | - | Class F | - | 11080VA, 4400W |
|
AZ762H-1ABE-5DEF
RELAY GEN PURPOSE SPST 16A 5V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ762H |
Box |
Active |
Datasheet
|
- | Through Hole | 5VDC | -40°C ~ 105°C | PC Pin | CUR, UL, VDE | General Purpose | 80.6 mA | Non Latching | Sealed - Fully | Silver Nickel (AgNi), Gold (Au) | SPST-NO (1 Form A) | 16 A | 440VAC, 125VDC - Max | 0.5 VDC | 3.5 VDC | 7 ms | 3 ms | - | Class F | - | 4600VA |
|
AZ2160-1CE-12DEF
RELAY GEN PURPOSE SPDT 40A 12V
|
Contact |
- immediate |
American Zettler |
2000 |
ROHS3 Compliant |
AZ2160 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -55°C ~ 125°C | PC Pin, Quick Connect - 0.250" (6.3mm) | CUR, UL | General Purpose | 77.4 mA | Non Latching | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 1.2 VDC | 9 VDC | 12 ms | 5 ms | - | Class F | - | 10000VA, 900W |
|
AZ762H-1ABE-12DEF
RELAY GEN PURPOSE SPST 16A 12V
|
Contact |
- immediate |
American Zettler |
1000 |
ROHS3 Compliant |
AZ762H |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -40°C ~ 105°C | PC Pin | CUR, UL, VDE | General Purpose | 33.3 mA | Non Latching | Sealed - Fully | Silver Nickel (AgNi), Gold (Au) | SPST-NO (1 Form A) | 16 A | 440VAC, 125VDC - Max | 1.2 VDC | 8.4 VDC | 7 ms | 3 ms | - | Class F | - | 4600VA |
|
AZ2160-1C-12DEF
RELAY GEN PURPOSE SPDT 40A 12V
|
Contact |
- immediate |
American Zettler |
2000 |
ROHS3 Compliant |
AZ2160 |
Box |
Active |
Datasheet
|
- | Through Hole | 12VDC | -55°C ~ 125°C | PC Pin, Quick Connect - 0.250" (6.3mm) | CUR, UL | General Purpose | 77.4 mA | Non Latching | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 1.2 VDC | 9 VDC | 12 ms | 5 ms | - | Class F | - | 10000VA, 900W |
