Results : 5078 products

Mfr Part #	Price	Stock ?	Manufacturer	Min order	RoHS status	Seri	Package	Part Status	Datasheet	Tolerance	Material	Diameter	Length	Width	Height	Core Type	Supplier Device Package	Inductance Factor (Al)	Finish	Gap	Effective Permeability (µe)	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm	Effective Area (Ae) mm²	Minimum Core Cross Section (Amin) mm²	Effective Magnetic Volume (Ve) mm³

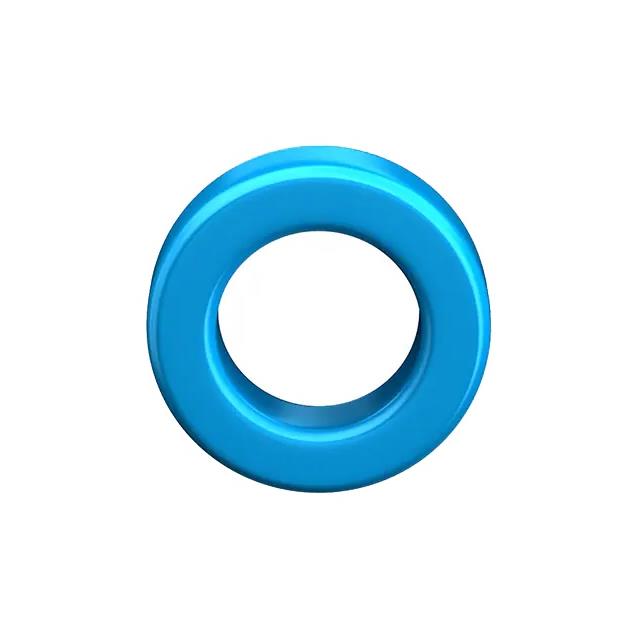

B64290L0674X049 R36/23/15 N49 TOROID	Contact	- immediate	EPCOS - TDK Electronics	300	ROHS3 Compliant	B64290	Tray	Active	Datasheet	-	N49	-	-	-	-	Toroid	-	1.3 µH	1500	Epoxy	Gapped	-	-	-	-	-
E58/11/38-3F3 Ferrite Misc	Contact	- immediate	Ferroxcube	800	ROHS3 Compliant	-	Bulk	Active	Datasheet	±25%	3F3	-	2.299" (58.40mm)	1.500" (38.10mm)	0.413" (10.50mm)	E	E 58 x 11 x 38	7.71 µH	Uncoated	Ungapped	1640.0	0.268	80.6	308.0	308.0	24600.0
EC70/34/17-3C91-G1000 Ferrite Misc	Contact	- immediate	Ferroxcube	640	ROHS3 Compliant	-	Bulk	Active	Datasheet	±25%	3C91	-	2.823" (71.70mm)	0.646" (16.40mm)	1.358" (34.50mm)	EC	EC 70 x 34 x 17	6.1 µH	Uncoated	Gapped	140.0	144.0	279.0	211.0	40100.0	-
EC70/34/17-3C91-G200 Ferrite Misc	Contact	- immediate	Ferroxcube	640	ROHS3 Compliant	-	Bulk	Active	Datasheet	±25%	3C91	-	2.823" (71.70mm)	0.646" (16.40mm)	1.358" (34.50mm)	EC	EC 70 x 34 x 17	6.1 µH	Uncoated	Gapped	580.0	144.0	279.0	211.0	40100.0	-
EC70/34/17-3C90-G2000 Ferrite Misc	Contact	- immediate	Ferroxcube	640	ROHS3 Compliant	-	Bulk	Active	Datasheet	±25%	3C90	-	2.823" (71.70mm)	0.646" (16.40mm)	1.358" (34.50mm)	EC	EC 70 x 34 x 17	170 nH	Uncoated	Gapped	70.0	144.0	279.0	211.0	40100.0	-
EC70/34/17-3C91-G500 Ferrite Misc	Contact	- immediate	Ferroxcube	640	ROHS3 Compliant	-	Bulk	Active	Datasheet	±25%	3C91	-	2.823" (71.70mm)	0.646" (16.40mm)	1.358" (34.50mm)	EC	EC 70 x 34 x 17	6.1 µH	Uncoated	Gapped	260.0	144.0	279.0	211.0	40100.0	-
EC70/34/17-3C90-E250 Ferrite Misc	Contact	- immediate	Ferroxcube	640	ROHS3 Compliant	-	Bulk	Active	Datasheet	±5%	3C90	-	2.823" (71.70mm)	0.646" (16.40mm)	1.358" (34.50mm)	EC	EC 70 x 34 x 17	250 nH	Uncoated	Gapped	103.0	144.0	279.0	211.0	40100.0	-
RM12/I-3F3-A400 Ferrite Misc	Contact	- immediate	Ferroxcube	300	ROHS3 Compliant	RM12/I	Bulk	Active	Datasheet	±5%	3F3	-	1.472" (37.40mm)	0.634" (16.10mm)	0.482" (12.25mm)	RM	RM 12	400 nH	Uncoated	Gapped	123.0	0.388	56.6	146.0	125.0	8340.0
RM12/I-3F3-A315 Ferrite Misc	Contact	- immediate	Ferroxcube	300	ROHS3 Compliant	-	Bulk	Active	Datasheet	±5%	3F3	-	1.472" (37.40mm)	0.634" (16.10mm)	0.482" (12.25mm)	RM	RM 12	315 nH	Uncoated	Gapped	97.0	0.388	56.6	146.0	125.0	8340.0
E56/24/19-3C94-G500 FERRITE CORE E 3C94	Contact	- immediate	Ferroxcube	600	ROHS3 Compliant	-	Bulk	Active	Datasheet	-	3C94	-	2.209" (56.10mm)	0.740" (18.80mm)	0.929" (23.60mm)	E	E 56 x 24 x 19	Uncoated	-	-	-	-	-	-	-	-
TX42/26/18-3E25 Ferrite Misc	Contact	- immediate	Ferroxcube	448	ROHS3 Compliant	TX42/26/18	Bulk	Active	Datasheet	-	3E25	1.656" (42.05mm)	-	-	0.709" (18.00mm)	Toroid	TX 42 x 26 x 18	Epoxy	Ungapped	0.769	103.0	134.0	13810.0	-	-	-

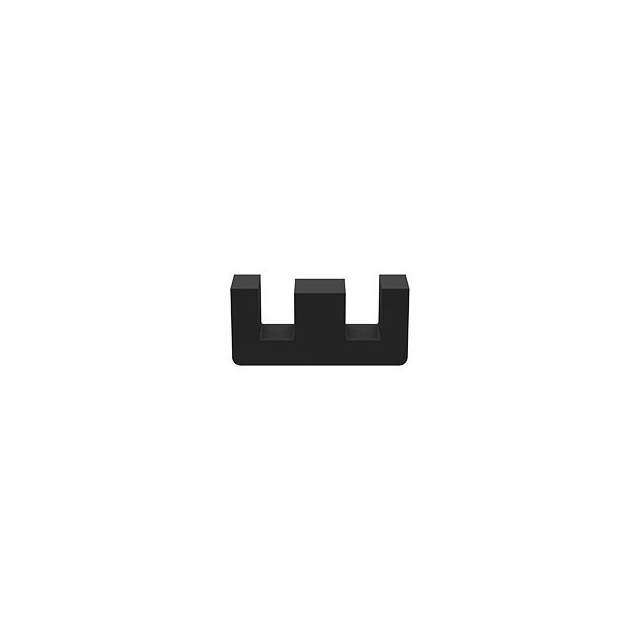

B66385G0000X187 FERRITE CORE E N87 1PC	Contact	- immediate	EPCOS - TDK Electronics	432	ROHS3 Compliant	E56/24/19	Box	Active	Datasheet	-	N87	-	2.209" (56.10mm)	0.740" (18.80mm)	0.929" (23.60mm)	E	E 56 x 24 x 19	Uncoated	Ungapped	-	-	-	-	-	-	-
RM12/I-3C97-A400 FERRITE CORE RM 400NH 3C97 2PC	Contact	- immediate	Ferroxcube	300	ROHS3 Compliant	-	Bulk	Active	Datasheet	±3%	3C97	-	1.472" (37.40mm)	0.634" (16.10mm)	0.965" (24.50mm)	RM	RM 12	400 nH	Uncoated	Gapped	123.0	0.388	56.6	146.0	125.0	8340.0
RM12/I-3C97-A630 FERRITE CORE RM 630NH 3C97 2PC	Contact	- immediate	Ferroxcube	300	ROHS3 Compliant	-	Bulk	Active	Datasheet	±3%	3C97	-	1.472" (37.40mm)	0.634" (16.10mm)	0.965" (24.50mm)	RM	RM 12	630 nH	Uncoated	Gapped	194.0	0.388	56.6	146.0	125.0	8340.0
00K8020U026 KOOL MU 8020 U CORE	Contact	- immediate	Magnetics, a division of Spang & Co.	252	ROHS3 Compliant	-	Bulk	Active	Datasheet	±8%	Kool Mu	-	3.150" (80.00mm)	0.780" (19.80mm)	1.500" (38.10mm)	U	-	64 nH	26	Uncoated	Ungapped	273.0	195.0	53200.0	-	-
