| Chọn |
Mfr Part # |
Giá |
Stock ? |
Nhà sản xuất |
Số lượng đặt tối thiểu |
RoHS status |
Seri |
Kiểu đóng gói |
Trạng thái sản phẩm |
Tài liệu |
Size / Dimension |
Shape |
Type |
Technology |
Material - Cone |
Material - Magnet |
Termination |
Ingress Protection |
Frequency - Self Resonant |
Ratings |
Port Location |
Height - Seated (Max) |
Impedance |
Power - Max |
Power - Rated |
Frequency Range |
Efficiency - dBA |
Efficiency - Testing |
Efficiency - Type |
|
ASX02104-R
SPEAKER 4OHM 250MW TOP PORT 72DB
|
Liên hệ |
43 - immediate |
PUI Audio, Inc. |
1 |
ROHS3 Compliant |
ASX |
Tray |
Active |
Tài liệu
|
0.823" Dia (20.90mm) | Round | Exciter | Magnetic | - | Nd-Fe-B | Solder Pads | - | 640Hz | - | Top | 0.335" (8.50mm) | 4 Ohms | 500 mW | 250 mW | 640 Hz ~ 10.5 kHz | 72.00 | 1W/100mm | Sound Pressure Level (SPL) |
|
AS04008PO-2-LW152-R
SPEAKER 8OHM 1W TOP PORT 84DB
|
Liên hệ |
40 - immediate |
PUI Audio, Inc. |
1 |
ROHS3 Compliant |
AS |
Tray |
Active |
Tài liệu
|
1.575" L x 1.114" W (40.00mm x 28.30mm) | Rectangular | General Purpose | Magnetic | Paper | Nd-Fe-B | Wire Leads | - | 450Hz | - | Top | 0.472" (12.00mm) | 8 Ohms | 2 W | 1 W | 450 Hz ~ 20 kHz | 84.00 | 1W/500mm | Sound Pressure Level (SPL) |
|
SP-3114Y
SPEAKER 8OHM 2W TOP PORT 82DB
|
Liên hệ |
27 - immediate |
Soberton Inc. |
1 |
ROHS3 Compliant |
SP Micro Speaker |
Tray |
Active |
Tài liệu
|
1.220" Dia (31.00mm) | Round | General Purpose | Magnetic | - | Nd-Fe-B | Quick Connect | - | 270Hz | - | Top | 0.571" (14.50mm) | 8 Ohms | 3 W | 2 W | 270 Hz ~ 20 kHz | 82.00 | 1W/500mm | Sound Pressure Level (SPL) |
|
SP-4029-1
SPEAKER 4OHM 2W TOP PORT 85DB
|
Liên hệ |
57 - immediate |
Soberton Inc. |
1 |
ROHS3 Compliant |
SP Micro Speaker |
Tray |
Active |
Tài liệu
|
Rectangular | General Purpose | Magnetic | Paper/Cloth | Nd-Fe-B | Wire Leads | - | 450Hz | - | Top | 0.472" (12.00mm) | 4 Ohms | 3 W | 2 W | 450 Hz ~ 20 kHz | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | - |
|

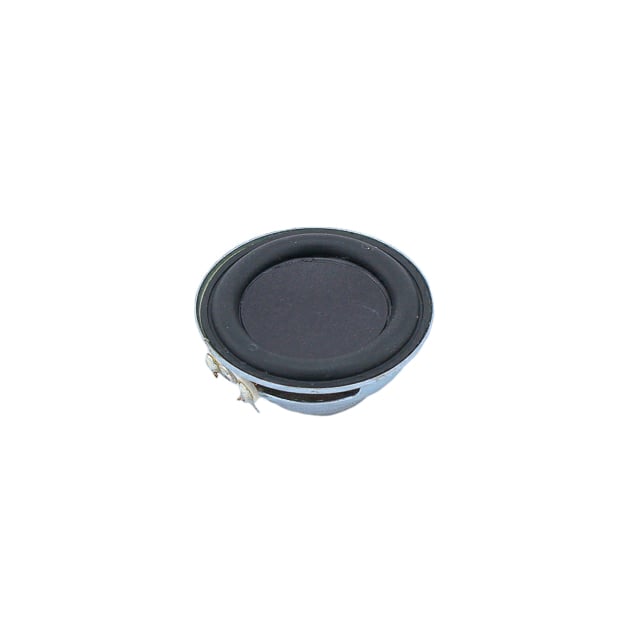

SP-3616
SPEAKER 4OHM 2W TOP PORT 80DB
|
Liên hệ |
86 - immediate |
Soberton Inc. |
1 |
ROHS3 Compliant |
SP |
Tray |
Active |
Tài liệu
|
1.417" Dia (36.00mm) | Round | General Purpose | Magnetic | Paper, Polyurethane (PU) | Nd-Fe-B | Solder Eyelet(s) | - | 190Hz | - | Top | 0.642" (16.30mm) | 4 Ohms | 3 W | 2 W | 190 Hz ~ 20 kHz | 80.00 | 1W/100mm | Sound Pressure Level (SPL) |
|
CSS-10237-54
SPEAKER 4OHM 5W TOP PORT 90DB
|
Liên hệ |
45 - immediate |
Same Sky |
1 |
ROHS3 Compliant |
CSS |
Box |
Active |
Tài liệu
|
4.016" L x 4.016" W (102.00mm x 102.00mm) | Round, Square Frame | General Purpose | Magnetic | Paper | Ferrite | Solder Eyelet(s) | - | 200Hz | - | Top | 1.437" (36.50mm) | 4 Ohms | 8 W | 5 W | 160 Hz ~ 10 kHz | 90.00 | 1W/500mm | Sound Pressure Level (SPL) |
|
SM150808-2
SPEAKER 8OHM 500MW TOP PORT 87DB
|
Liên hệ |
- immediate |
DB Unlimited |
600 |
ROHS3 Compliant |
- |
Tape & Reel (TR) |
Active |
Tài liệu
|
0.591" L x 0.591" W (15.00mm x 15.00mm) | Square | General Purpose | Magnetic | Polyester, Polyethylene Terephthalate (PET) | - | Solder Pads | - | 850Hz | - | Top | 0.157" (4.00mm) | 8 Ohms | 800 mW | 500 mW | 850 Hz ~ 20 kHz | 87.00 | 100mm | Sound Pressure Level (SPL) |
|
SM150808-2
SPEAKER 8OHM 500MW TOP PORT 87DB
|
Liên hệ |
67 - immediate |
DB Unlimited |
1 |
ROHS3 Compliant |
- |
Cut Tape (CT) |
Active |
Tài liệu
|
0.591" L x 0.591" W (15.00mm x 15.00mm) | Square | General Purpose | Magnetic | Polyester, Polyethylene Terephthalate (PET) | - | Solder Pads | - | 850Hz | - | Top | 0.157" (4.00mm) | 8 Ohms | 800 mW | 500 mW | 850 Hz ~ 20 kHz | 87.00 | 100mm | Sound Pressure Level (SPL) |
|
SM150808-2
SPEAKER 8OHM 500MW TOP PORT 87DB
|
Liên hệ |
67 - immediate |
DB Unlimited |
1 |
ROHS3 Compliant |
- |
Digi-Reel® |
Active |
Tài liệu
|
0.591" L x 0.591" W (15.00mm x 15.00mm) | Square | General Purpose | Magnetic | Polyester, Polyethylene Terephthalate (PET) | - | Solder Pads | - | 850Hz | - | Top | 0.157" (4.00mm) | 8 Ohms | 800 mW | 500 mW | 850 Hz ~ 20 kHz | 87.00 | 100mm | Sound Pressure Level (SPL) |
|
K 50 FL - 16 OHM
SPEAKER 16OHM 1W TOP PORT 80DB
|
Liên hệ |
28 - immediate |
Visaton GmbH & Co. KG |
1 |
ROHS3 Compliant |
Miniature Speaker |
Bulk |
Active |
Tài liệu
|
1.969" Dia (50.00mm) | Round | General Purpose | - | Plastic | - | Solder Pads | - | Top | 0.276" (7.00mm) | 16 Ohms | 2 W | 1 W | 150 Hz ~ 20 kHz | 80.00 | 1W/1M | Sound Pressure Level (SPL) | - | - |
|
FR 10 HMP - 4 OHM
SPEAKER 4OHM 20W TOP PORT 86DB
|
Liên hệ |
38 - immediate |
Visaton GmbH & Co. KG |
1 |
ROHS3 Compliant |
- |
Bulk |
Active |
Tài liệu
|
- | Round, Square Frame | General Purpose | - | Polypropylene (PP) | - | Quick Connect | Waterproof | 120Hz | - | Top | 1.772" (45.00mm) | 4 Ohms | 30 W | 20 W | 90 Hz ~ 20 kHz | 86.00 | 1W/1M | Sound Pressure Level (SPL) |
|
CSS-878731-58
SPEAKER 8OHM 5W TOP PORT 95DB
|
Liên hệ |
44 - immediate |
Same Sky |
1 |
ROHS3 Compliant |
CSS |
Box |
Active |
Tài liệu
|
3.425" L x 3.425" W (87.00mm x 87.00mm) | Round, Square Frame | General Purpose | Magnetic | Polyester, Polyethylene Terephthalate (PET) | Ferrite | Solder Eyelet(s) | - | 550Hz | - | Top | 1.240" (31.50mm) | 8 Ohms | 8 W | 5 W | 10 kHz ~ 440 kHz | 95.00 | 1W/500mm | Sound Pressure Level (SPL) |
|
SM400204-1
SPEAKER 4OHM 3W TOP PORT 99DB
|
Liên hệ |
36 - immediate |
DB Unlimited |
1 |
ROHS3 Compliant |
Dynamis |
Tray |
Active |
Tài liệu
|
1.575" Dia (40.00mm) | Round | General Purpose | Magnetic | - | Solder Eyelet(s) | - | 220Hz | - | Top | 0.665" (16.90mm) | 4 Ohms | 4 W | 3 W | 220 Hz ~ 20 kHz | 99.00 | 100mm | Sound Pressure Level (SPL) | - |
|
PX 10 - 4 OHM
SPEAKER 4OHM 20W TOP PORT 83DB
|
Liên hệ |
26 - immediate |
Visaton GmbH & Co. KG |
1 |
ROHS3 Compliant |
- |
Bulk |
Active |
Tài liệu
|
- | Round, Square Frame | Full Range | Piezo | Polypropylene (PP) | - | Quick Connect | Waterproof | 110Hz | - | Top | 1.929" (49.00mm) | 4 Ohms | 30 W | 20 W | 70 Hz ~ 18 kHz | 83.00 | 1W/1M | Sound Pressure Level (SPL) |
|
FR 10 F - 4 OHM
SPEAKER 4OHM 20W TOP PORT 86DB
|
Liên hệ |
59 - immediate |
Visaton GmbH & Co. KG |
1 |
ROHS3 Compliant |
- |
Bulk |
Active |
Tài liệu
|
3.996" Dia (101.50mm) | Round | General Purpose | - | - | - | Quick Connect | - | 133Hz | - | Top | 1.417" (36.00mm) | 4 Ohms | 30 W | 20 W | 100 Hz ~ 22 kHz | 86.00 | 1W/1M | Sound Pressure Level (SPL) |
