| Select |
Mfr Part # |
Price |
Stock ? |
Manufacturer |
Min order |
RoHS status |
Seri |
Package |
Part Status |
Datasheet |
Package / Case |
Mounting Type |
Triac Type |
Configuration |
Operating Temperature |
Current - Hold (Ih) (Max) |
Current - Gate Trigger (Igt) (Max) |
Current - Non Rep. Surge 50, 60Hz (Itsm) |
Voltage - Gate Trigger (Vgt) (Max) |
Supplier Device Package |
Current - On State (It (RMS)) (Max) |
Voltage - Off State |
|
Q6025LH5TP
TRIAC ALTERNSTR 600V 25A TO220AB
|
Contact |
0 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 125u00b0C (TJ) | 100 mA | 50 mA | 208A, 250A | 1.3 V | TO-220AB-L | 25 A | 600 V |
|

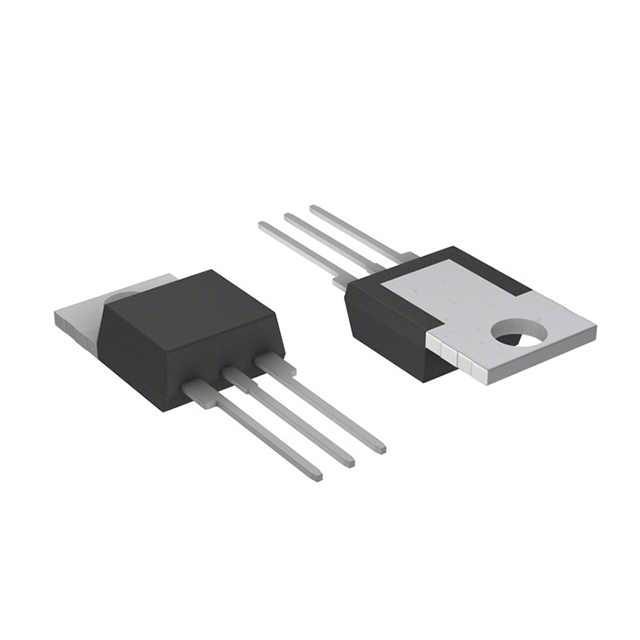

QJ4025LH5TP
TRIAC ALTRNSTR 400V 25A ITO220AB
|
Contact |
- immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40°C ~ 150°C (TJ) | 50 mA | 50 mA | 208A, 250A | 1.3 V | ITO-220AB | 25 A | 400 V |
|
HQ6025LH5TP
TRIAC ALTERNSTR 600V 25A TO220AB
|
Contact |
6579 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 150u00b0C (TJ) | 80 mA | 50 mA | 250A, 300A | 1.3 V | TO-220AB | 25 A | 600 V |
|
QJ8030LH4TP
TRIAC ALTERNSTR 800V 30A TO220AB
|
Contact |
3883 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
QJxx30LH4 |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 150u00b0C (TJ) | 60 mA | 35 mA | 290A, 350A | 1 V | TO-220AB-L | 30 A | 800 V |
|
Q6016LH4TP
TRIAC ALTERNISTOR 600V 16A TO220
|
Contact |
592 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 125u00b0C (TJ) | 50 mA | 35 mA | 167A, 200A | 1.3 V | TO-220 Isolated Tab | 16 A | 600 V |
|
BTA26-700BRG
TRIAC 700V 25A TOP3
|
Contact |
533 - immediate |
STMicroelectronics |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TOP-3 Insulated | Through Hole | Standard | Single | -40u00b0C ~ 125u00b0C (TJ) | 80 mA | 50 mA | 250A, 260A | 1.3 V | TOP3 | 25 A | 700 V |
|
T2550-12I
TRIAC ALTERNSTR 1.2KV 25A TO220
|
Contact |
2023 - immediate |
STMicroelectronics |
1 |
ROHS3 Compliant |
Snubberless™ |
Tube |
Active |
Datasheet
|
TO-220-3 | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 125u00b0C (TJ) | 60 mA | 50 mA | 240A, 252A | 1.3 V | TO-220 | 25 A | 1.2 kV |
|
BTA25-800CW3G
TRIAC 800V 25A TO220AB
|
Contact |
997 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 | Through Hole | Standard | Single | -40u00b0C ~ 125u00b0C (TJ) | 50 mA | 35 mA | 250A @ 60Hz | 1.3 V | TO-220AB | 25 A | 800 V |
|
BTB41-800BRG
TRIAC 800V 40A TOP3
|
Contact |
914 - immediate |
STMicroelectronics |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TOP-3 | Through Hole | Standard | Single | -40u00b0C ~ 125u00b0C (TJ) | 80 mA | 50 mA | 400A, 420A | 1.3 V | TOP3 | 40 A | 800 V |
|
Q6035RH5TP
TRIAC ALTERNISTOR 600V 35A TO220
|
Contact |
749 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 | Through Hole | Alternistor - Snubberless | Single | -25u00b0C ~ 125u00b0C (TJ) | 75 mA | 50 mA | 290A, 350A | 2 V | TO-220 Non-Isolated Tab | 35 A | 600 V |
|
BTA41-700BRG
TRIAC 700V 40A TOP3
|
Contact |
518 - immediate |
STMicroelectronics |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TOP-3 Insulated | Through Hole | Standard | Single | -40u00b0C ~ 125u00b0C (TJ) | 80 mA | 50 mA | 400A, 420A | 1.3 V | TOP3 | 40 A | 700 V |
|
Q8025L6TP
TRIAC ALTERNSTR 800V 25A TO220AB
|
Contact |
377 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-220-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 125u00b0C (TJ) | 100 mA | 80 mA | 208A, 250A | 1.3 V | TO-220AB-L | 25 A | 800 V |
|
Q4025J6TP
TRIAC ALTERNSTR 400V 25A TO218X
|
Contact |
462 - immediate |
Littelfuse Inc. |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-218X-3 Isolated Tab | Through Hole | Alternistor - Snubberless | Single | -40u00b0C ~ 125u00b0C (TJ) | 100 mA | 80 mA | 208A, 250A | 1.3 V | TO-218X Isolated | 25 A | 400 V |
|

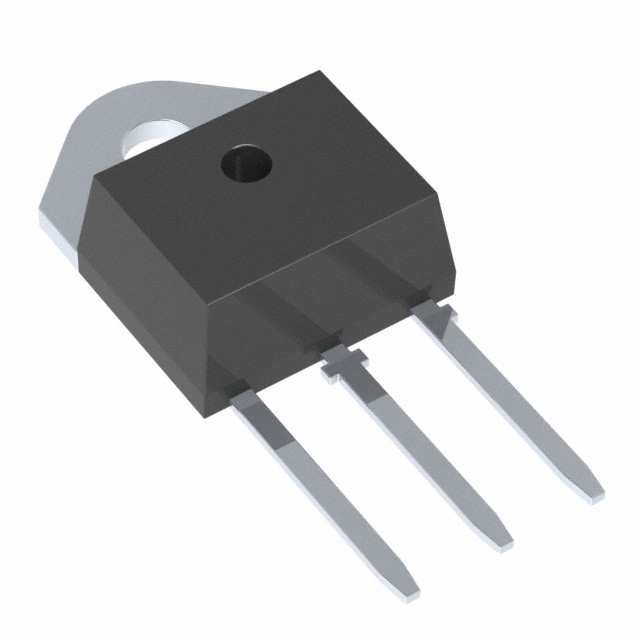

SST41Z-800B
TRIAC 800V 40A TO3P
|
Contact |
0 - immediate |
SMC Diode Solutions |
1 |
ROHS3 Compliant |
- |
Tube |
Active |
Datasheet
|
TO-3P-3, SC-65-3 | Through Hole | Standard | Single | -40u00b0C ~ 125u00b0C (TJ) | 80 mA | 70 mA | 400A @ 50Hz | 1.3 V | TO-3P Insulated | 40 A | 800 V |
|
QJ8025NH4RP
TRIAC ALTERNISTOR 800V 25A TO263
|
Contact |
1500 - immediate |
Littelfuse Inc. |
500 |
ROHS3 Compliant |
QJxx25xHx |
Tape & Reel (TR) |
Active |
Datasheet
|
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Surface Mount | Alternistor - Snubberless | Single | -40u00b0C ~ 150u00b0C (TJ) | 50 mA | 35 mA | 208A, 250A | 1.3 V | TO-263 (D2PAK) | 25 A | 800 V |
