M2023S2A2G40
SWITCH TOGGLE DPDT 0.4VA 28V
|
Contact |
14 - immediate |
NKK Switches |
1 |
ROHS3 Compliant |
M |
Tray |
Obsolete |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 6.86mm | Standard Round | - | Circular - 6.50mm Dia | 28 V | 28 V |
|

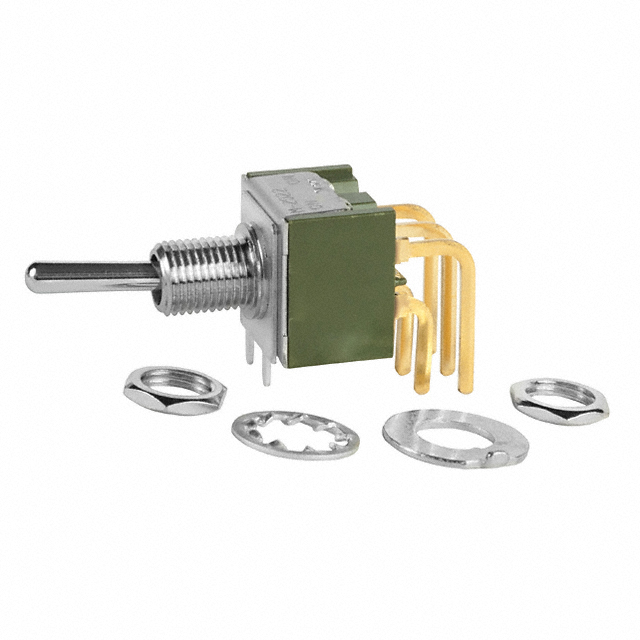

M2022SS1G30
SWITCH TOGGLE DPDT 0.4VA 28V
|
Contact |
- immediate |
NKK Switches |
1 |
ROHS3 Compliant |
M |
Bulk |
Obsolete |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Through Hole, Right Angle | DPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 10.50mm | Standard Round | - | Circular - 6.50mm Dia | 28 V | 28 V |
|
2M1-DP6-T6-B1-M2RE
SWITCH TOGGLE SP3T 0.4VA 20V
|
Contact |
- immediate |
Carling Technologies |
100 |
ROHS3 Compliant |
2M |
Bulk |
Active |
Datasheet
|
Jumper needed to achieve triple throw | 0.4VA (AC/DC) | Panel Mount | SP3T | On-On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 12.10mm | Flatted | IP67 - Dust Tight, Waterproof | Circular - 6.35mm Dia | 20 V | 20 V |
|
5236WCDB7
TOGGLE SWITCH 5000 MINIATURE
|
Contact |
- immediate |
APEM Inc. |
50 |
RoHS Compliant |
5000 |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Through Hole, Right Angle, Vertical | SPDT | On-On | -40°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 13.50mm | Standard Round | - | - | 20 V | 20 V |
|
1004P3T1B1M7QE
SWITCH TOGGLE 4PDT 5A 120V
|
Contact |
- immediate |
E-Switch |
200 |
ROHS3 Compliant |
100 |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Panel Mount, Right Angle, Vertical | 4PDT | On-Off-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 10.41mm | Standard Round | - | Circular - 6.35mm Dia | 120 V | 28 V |
|

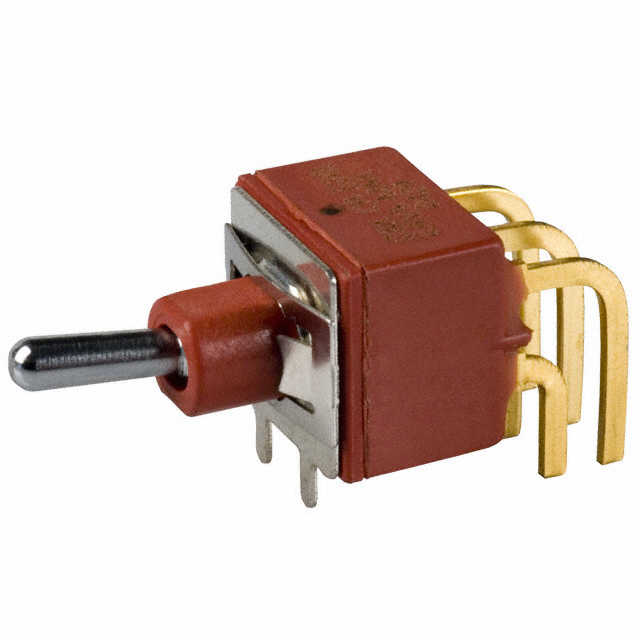

E201MD1ABE
SWITCH TOGGLE DPDT 0.4VA 20V
|
Contact |
- immediate |
C&K |
2640 |
ROHS3 Compliant |
E |
Tray |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Through Hole, Right Angle | DPDT | On-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 7.62mm | Standard Round | IP57 - Dust Protected, Waterproof | - | 20 V | 20 V |
|
4646C22
TOGGLE SWITCH 4400 6A 125V
|
Contact |
- immediate |
APEM Inc. |
20 |
RoHS Compliant |
- |
Bulk |
Active |
Datasheet
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7107P3YWBE
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
C&K |
0 |
ROHS3 Compliant |
7000 |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Panel Mount | SPDT | On-Off-Mom | -30°C ~ 85°C | Wire Wrap | - | - | Non-Illuminated | 1/4-40 | 11.43mm | Flat Anti-Rotation | - | Circular - 6.35mm Dia | 20 V | 20 V |
|
T103MHV3BE
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
C&K |
0 |
ROHS3 Compliant |
T |
Tray |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Panel Mount | SPDT | On-Off-On | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 10-48 | 5.44mm | Standard Round | - | Circular - 4.95mm Dia | 20 V | 20 V |
|
SF36S000000
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
APEM Inc. |
50 |
ROHS3 Compliant |
SF |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Panel Mount | SPDT | On-On | -20°C ~ 85°C | Solder Lug | - | - | Non-Illuminated | 1/4-40 | 10.70mm | Standard Round | - | Circular - 6.50mm Dia | 20 V | 20 V |
|
SF36P000000
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
APEM Inc. |
50 |
ROHS3 Compliant |
SF |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Panel Mount | SPDT | On-On | -20°C ~ 85°C | PC Pin | - | - | Non-Illuminated | 1/4-40 | 10.70mm | Standard Round | - | Circular - 6.50mm Dia | 20 V | 20 V |
|
7105MD9AV2GE
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
C&K |
0 |
ROHS3 Compliant |
7000 |
Bulk |
Active |
Datasheet
|
- | 0.4VA (AC/DC) | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | -30°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 6.86mm | Standard Round | - | - | 20 V | 20 V |
|
7201SDZQE
SWITCH TOGGLE DPDT 5A 120V
|
Contact |
21 - immediate |
WEC |
10 |
ROHS3 Compliant |
7000 |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Panel Mount | DPDT | On-On | -30°C ~ 85°C | Solder Lug | - | - | Non-Illuminated | 1/4-40 | 12.45mm | Standard Round | - | Circular - 6.35mm Dia | 120 V | 28 V |
|
7201SDZQE
SWITCH TOGGLE DPDT 5A 120V
|
Contact |
- immediate |
C&K |
50 |
ROHS3 Compliant |
7000 |
Tray |
Active |
Datasheet
|
Epoxy Sealed Terminals | 5A (AC/DC) | Panel Mount | DPDT | On-On | -30°C ~ 85°C | Solder Lug | - | - | Non-Illuminated | 1/4-40 | 12.45mm | Standard Round | - | Circular - 6.35mm Dia | 120 V | 28 V |
|
5236YCDB16X445
SWITCH TOGGLE SPDT 0.4VA 20V
|
Contact |
- immediate |
APEM Inc. |
50 |
ROHS3 Compliant |
5000 |
Bulk |
Active |
Datasheet
|
Epoxy Sealed Terminals | 0.4VA (AC/DC) | Through Hole | SPDT | On-On | -40°C ~ 85°C | PC Pin | - | - | Non-Illuminated | Unthreaded | 8.50mm | Standard Round | - | Circular - 6.50mm Dia | 20 V | 20 V |
